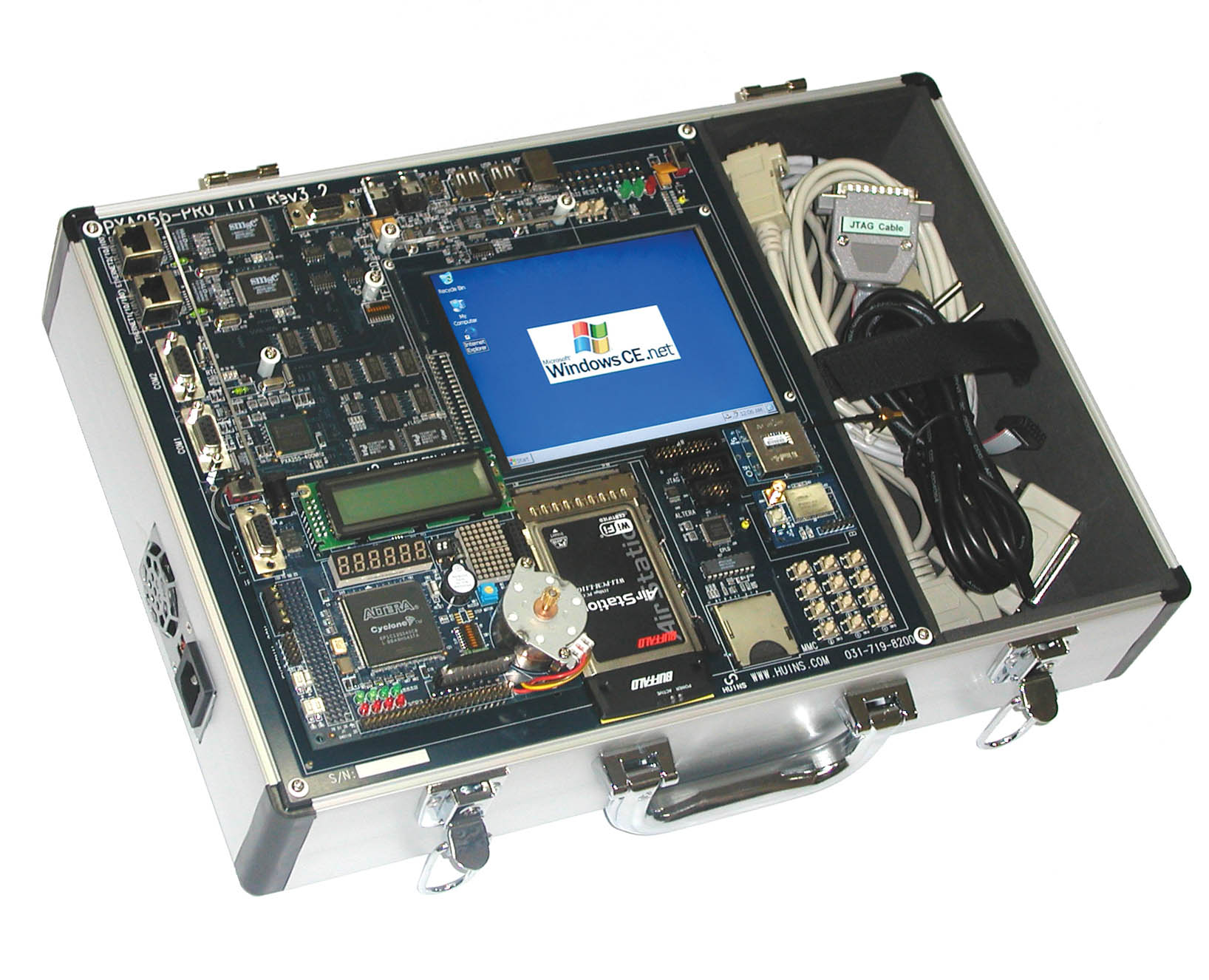

Intel PXA255 XScale Embedded Linux Development Kit
|
|
|||
|
|
Intel PXA255 XScale Embedded Linux Development Kit |
|
|
Intel PXA255 XScale Embedded Development Kit is an ultra low power platform based on Intel 400 MHz PXA255 RISC Processor. The 32-bit PXA255 RISC processor combines the efficiency of Intel design with the ARM v.5TE instruction set architecture. The Intel PXA255 processor delivers industry leading processing power with built-in multimedia capabilities for high performance and hand-held functionality. The PXA255 Embedded Development Kit is supported with development and training kits for the leading embedded operating systems including Windows CE.NET 4.2 and Linux. (2.4.19 Kernel)
|
|
|
|

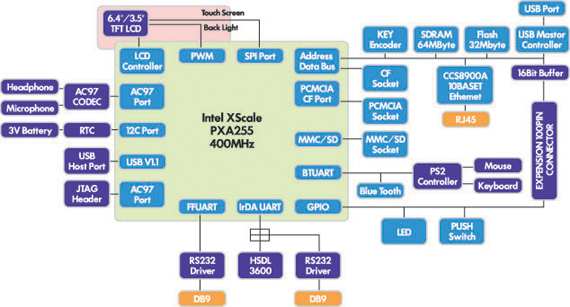

Specification |
|
| Microprocessor | Intel PXA255 (Turbo Mode: 400 MHz, Normal Mode: 200 MHz) |
| CPU Clock | 3.6864 MHz Crystal (PXA255 Main Clock Input)- 32.678 KHz Crystal (PXA255 RTC Clock) |
| SDRAM | 128 MB SDRAM, (32Bit, 100 MHz) |
| FLASH | 64 MB (16 Bit, Intel 28F128J3) |
| Ethernet | Two 10/100 Mbps Controllers |
| UART | Two: PXA255 IR_UART, PXA255 FF_UART |
| AC 97 Audio Codec |
AC97 compatible Stereo Codec,
Codec CS4202 Mic port, Head phone port |
| Display | 6.4" Color TFT LCD (640x480) |
| Touch Screen | ADS7846 via SSP Port |
| RTC | Battery Back up RTC |
| IrDA | IrDA Port (115,200 bps) |
| GPIO | Push S/W 1EA, LED 2EA |
| VGA | 1 PORT 16Million Colors |
| Debugging Port | JTAG : 10-Pin JTAG, 20-Pin Header for Multi-ICE |
| USB Host | USB 2.0 Host (OTG) |
| USB Client | USB 1.1 Client Interface |
| SD/MMC Card Socket | SD/MMC : 1 Slot |
| CF Card Socket | CF: 1 Slot |
| PCMCIA Card Socket | PCMCIA : 1 Slot |
| Keypad | Key PAD 12EA |
| Power | 220V AC, ATX SMPS Power Supply, +12, -12V, 5V, 3.3V Output |

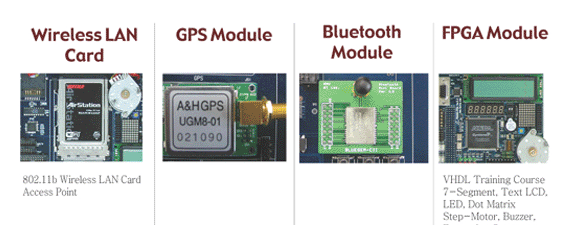

| Bluetooth Module | Bluetooth I/F (Option) |
| GPS Module | GPS I/F (Option) |
| FPGA Module | Altera Cyclone 120,000 Gates, Text LCD, LED, Step Motor, 7-Segment, Dot Matrix, AD/DA CMOS Image Sensor 640x480 |
| Case | Aluminum |
| Operating System |
Linux Kernel Source (Kernel Version2.4.19) Windows CE.NET 4.2 (Option) |
| Compiler |
GNU C Compiler - Linux "C" Compiler ARM ADS "C" Compiler, Debugger, Assembler for ARM9, Multi ICE ARM Emulator (Option) |
| JTAG | JflashMM |
| Linux Device Drivers |
10/100BaseT ( LAN91C111) Device Driver |
| Accessories |
JTAG, Serial, Parallel, Ethernet, 1:1 , and Power Cables PXA255 Board's Manual, Tutorials, Slides (800 pages) CD with: Linux Source Code, Manual, Datasheet, and Schematics |
|
Ordering Information:
Part Number: |
|
|
HiTech Global, LLC |
|
