Xilinx Virtex 5 LX330 ASIC Prototyping board with ARM Core Tile


	Virtex™-5 LX330 ASIC/SOC AMBA Prototyping Platform

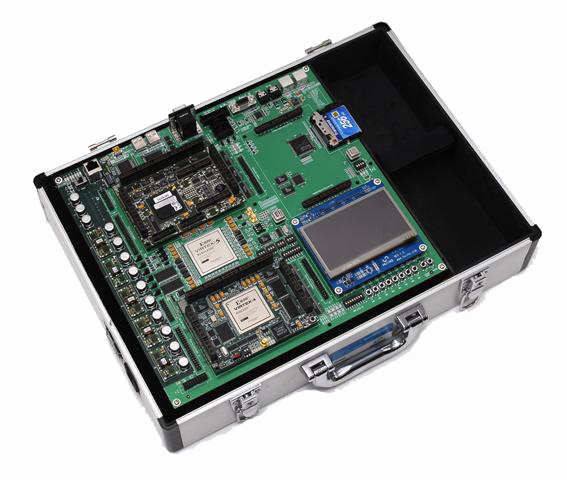

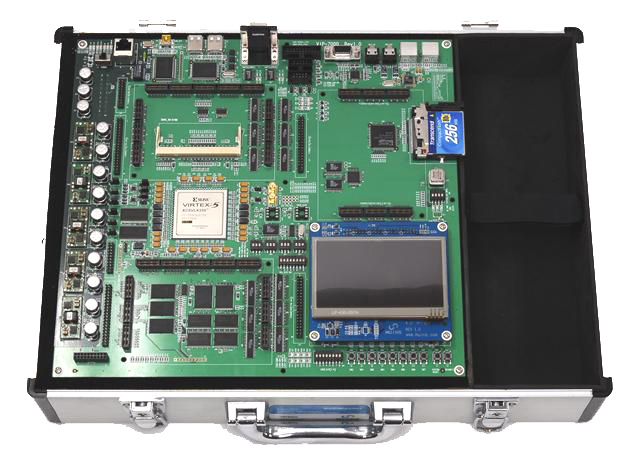

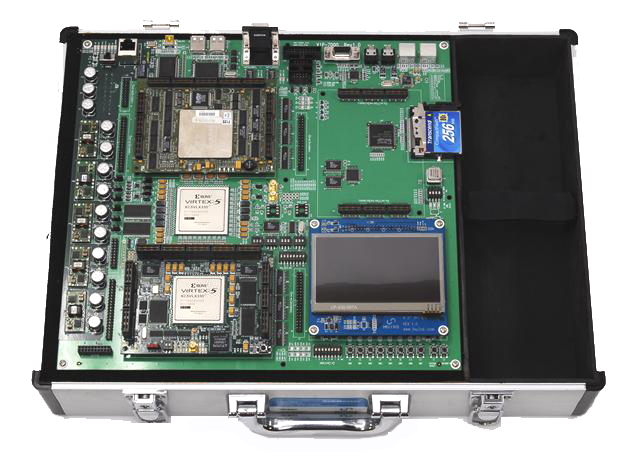

The V5IP-7000 is a complete ASIC/SOC logic emulation, prototyping and IP development/verification system. The V5IP-7000 base board is populated with one Xilinx Virtex-5 LX330 FPGA, supporting peripherals, IO, and power distribution. Up to six additional LX330 (or LX220) modules can be plugged into the high-speed connectors of the base board to significantly extend the platform's FPGA gate density.

The V5IP-7000 platform is designed to support AMBA AHB 2.0 and 3.0 AXI for ARM926EJ-S, ARM1136JF-S, ARM11MPCore, and ARM1156T2F-S Core Tile. These modules can be stacked on the based board or/and FPGA add-on LX330/LX220 modules.

In addition to the ARM add-on Core Tile modules, the "Video (DVI , Cameralink)", "PCIe/Cardbus ", "Debug (Mictor Logic analyzer", and " ADC/DAC 4CH ADC (125MSPS)" modules are also available to further extend the flexibility and functionality of the V5IP-7000 platform.

$G:\Prototyping Japan\VIP7000 block diagram.png$
V5IP-7000 Block Diagram

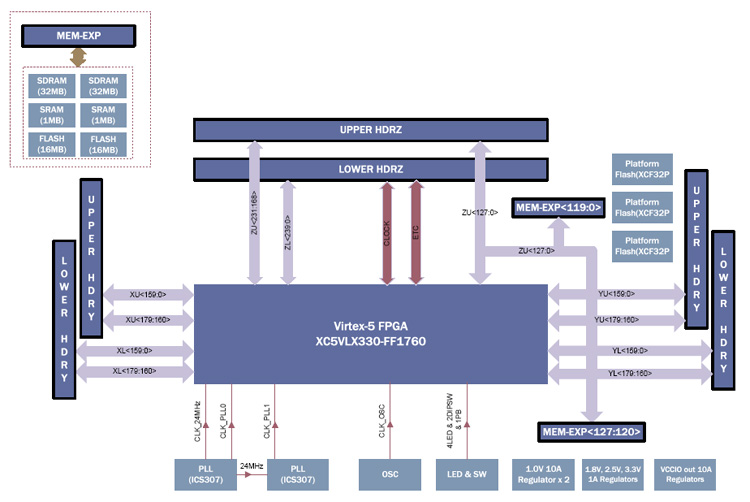

LX330 FPGA Module Block Diagram

Item	Specifications
SoC Processor	ARM Core Tile Interface Connector
SoC Processor	Options - Core Tile for ARM926EJ-S, ARM1136JF-S, ARM1156T2F-S, and CTMPCore
FPGA	Xilinx Virtex5 XC5VLX330 FF1760 (main board) Xilinx Virtex5 XC5VLX330 or LX220 (add-on modules)
Main Clock	1.2 ~ 131.5 MHz by PLL, Two OSC Sockets
Extra Clock	2 SMA connectors
High Speed Memory	- DDR2 SDRAM (SO-DIMM) - PC-133 64MB SDRAM - 2MB Asynchronous SRAM - Flash ROM 32MB
Communication	2-ch UART
	10/100 M Ethernet LAN91C111
	USB 2.0 OTG (ISP1761)
Video	4.3" (480x272) or 7" (800x200) TFT-LCD supporting 16-bit Color
Video	CMOS Image Camera Module
Audio Codec	AC97 Audio Codec (CS4202)
I/O	User Push Button Switch x 8, DIP Switch(8)
I/O	9 FPGA test pins
External I/O slot	2 Tile connectors and 2 Expansion connector
Debugging and Configuration	20-pin DEBUG JTAG port for ARM Core Tile
Download Port	JTAG port for FPGA
Download Port	Xilinx Platform Flash (XCF32P * 3)
Firmware	- Supports SRAM, SDRAM, EBI, INT Timer, TFT LCD, CIS interface, AHB Matrix, AHB2APBbridge, UART, and RESET controller with NGC files (XilinX Netlist file) - Linux 2.4.26 OS - Linux device driver: Ethernet, UART, TFT LCD, and CIS (included)
Examples	- FPGA test example ( DDR2, CIS to LCD test code, VGA color bar test code) - I/O pin test (736 pins) - AD/DA test code (125/165) - RTL Code for CMOS Image Sensor, TFT LCD, and LED test
Kit Content	- V5IP-7000 Board - JTAG Cable - Two 9-pin female-to-female null modem cables - Power Cable 220V or 110V - Aluminum Case - User Manual
Power Supply	Micro-ATX PC Power Supply 220V/110V AC

► Part Number & Price: -V5IP-7000 (the Base board with one soldered LX330 FPGA) Price: Contact us -V5IP-7000-1M (the Base board with one soldered LX330 FPGA + one add-on LX330 FPGA Module) Price: Contact us -V5IP-7000-2M (the Base board with one soldered LX330 FPGA + two add-on LX330 FPGA Modules) Price: Contact us -V5IP-7000-4M (the Base board with one soldered LX330 FPGA + four add-on LX330 FPGA Modules) Price: Contact us ► Optional Add-on Modules & Accessories:
Add-on PCI Express Module with Cable Part Number: H-PCIE Price: Contact us	Add-on DVI Receiver & Transceiver Module with Cable Part Number: H-DVI Price: Contact us	Add-on LX330 Module with memory Part Number: H-LX330-MEM Price: Contact us	Add-on LX330 FPGA Module Part Number: H-LX330 Price: Contact us
Add-on ARM Modules ARM CT926EJ-S ARM CT1136JF-S ARM CT1156T2F-S ARM CT1176JZF-S ARM CT11MPCore	Add-on Debug Module (Mictor Logic Analyzer Connectors) Part Number: H-DEBUG Price: Contact us	Add-on ADC/DAC Module 2 CH ADC (125MSPS) 2 CH DAC (165MSPS) Part Number: H-AD-DA Price: Contact us	10/100 Ethernet, USB 2.0, OTG/HOST, I2C, SPI Part Number: H-COMM Price: Contact us
PARS: Toolbox for Simulink that allows users to build multi-FPGA (and/or DSP) applications from a single Simulink model. Price: Contact us	Memory Module SDR SDRAM 64MB NOR FLASH 64MB Async. SRAM 1MB DRAM Module Sync. DPRAM Data bus size : 36bit Address bus size : 1 M	The latest Xilinx FPGA Design Tool supporting Virtex-5 devices Part #: DS-ISE-FND Price: $2,495	AV Module AC97 Codec, CMOS Image Sensor, VGA Out, TFT-LCD Interface
