Xilinx Virtex™ -7 V2000T PCI Express  Development Board






l

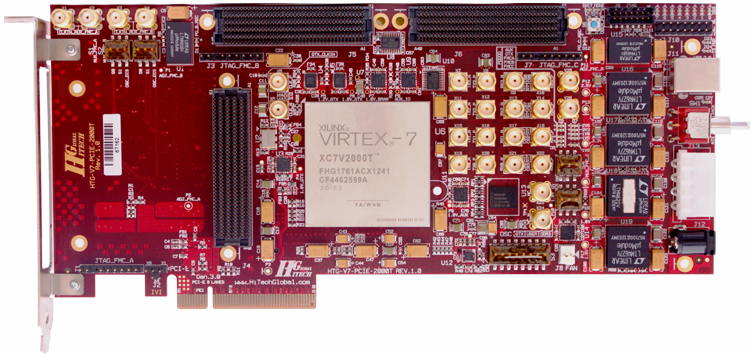

Powered by Xilinx Virtex-7 V2000T or X690T  the HTG700 is ideal for ASIC/SOC prototyping, high-performance computing, high-end image processing, PCI Express Gen 2 & 3 development, general purpose FPGA development, and/or applications requiring high speed serial transceivers (up to 12.5Gbps).

Three High Pin Count (HPC) FMC connectors provide access to 480 single-ended I/Os and 24 Serial Transceivers of the on board Virtex 7 FPGA. Availability of over 100 different off-the-shelf FMC modules extend functionality of the board for variety of different applications.

Eight lane of PCI Express Gen 2 is supported by hard coded controllers inside the Virtex 7 FPGA. The board's layout, performance of the Virtex 7 FPGA fabric, high speed serial transceivers (used for PHY interface), flexible on-board clock/jitter attenuator, along with soft PCI Express Gen 3 IP core allow usage of the board for PCI Express Gen3 applications.

The HTG700 Virtex 7 FPGA board can be used either in PCI Express mode (plugged into host PC/Server) or stand alone mode (powered by external ATX or wall power supply).

Supported Virtex-7 devices

  XC7V1500T XC7V2000T
Logic Resource Slices 229,050 305,400
Logic Cells 1,465,920 1,954,560
CLB Flip-Flops 1,832,400 2,434,200
Memory Resources Maximum Distributed RAM (Kbits) 16,163 21,550
Block RAM/FIFO W/ECC (36Kbits each) 969 1,292
Total Block RAM (Kbits) 34,884 46,512
Clocking CMTs (1 MMCM + 1 PLL) 18 24
I/O Resources Maximum Single -Ended I/O 850 1,200
Maximum Differential I/O Pairs 408 576
Embedded Hard IP Resources DSP48E1 Slices 1,620 2,160
Gen2 PCI Express Interface Blocks 3 4
Gen3 PCI Express Interface Blocks - -
Agile Mixed Signal (AMS) / XADC 1 1
Configuration AES/HMAC Blocks 1 1
GTX 12.5Gb/s Transceivers 36 36
GTH 13.1Gb/s Transceivers - -
GTZ 28.05Gb/s Transceivers - -
Speed Grade Commercial -1, -2 -1, -2
Extended -2L, -2G -2L, -2G
Industrial -1 -1
Configuration Configuration Memory (Mbit) 319.9 426.6



►Features:

▪ Xilinx Virtex-7 V2000Tor X690T FPGA
 ▪ Scalable via HTG-FMC-FPGA module (with one V1500T or V2000T FPGA) for
   providing higher FPGA gate density

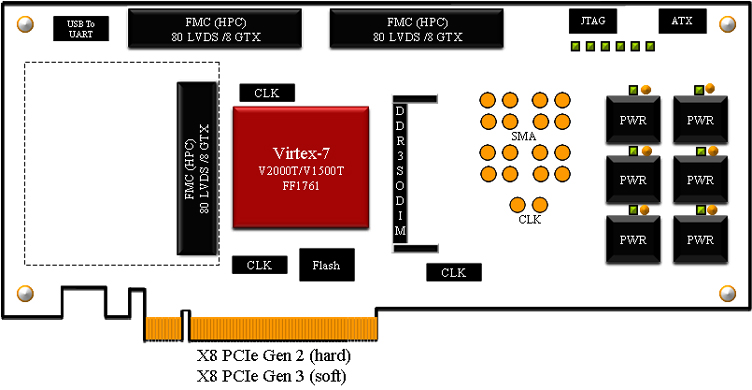

 ▪ x8 PCI Express Gen2 /Gen 3  edge connectors
  - Gen 2: using FPGA hard-coded PCI Express Gen2 controller
  - Gen 3: using soft PCI Express Gen 3 IP core

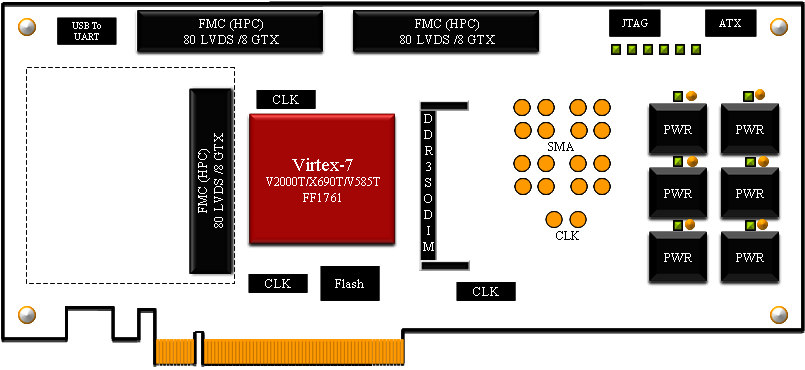

▪ x3 FPGA Mezzanine Connectors (FMC)
  - FMC #1: 80 LVDS (160 single-ended) I/Os and 8 GTX (12.5 Gbps) Serial
    Transceivers
  - FMC #2: 80 LVDS (160 single-ended) I/Os and 8 GTX (12.5 Gbps) Serial
    Transceivers
  - FMC #3: 80 LVDS (160 single-ended) I/Os and 8 GTX (12.5 Gbps) Serial
    Transceivers. Physical location of this  connector allows  plug-in FMC
    daughter cards having easy access to the board through the front panel.
▪ x4 SMA ports (16 SMAs providing 4 Txn/Txp/Rxn/Rxp) clocked by external
  pulse generator
▪ Configuration through JTAG or Micron G18 Flash
▪ USB to UART bridge
▪ ATX and DC power supplies for PCI Express and Stand Alone operations
▪ LEDs & Pushbuttons
▪ Size: 9.5" x 4.25"



►Kit Content:

Hardware:
- HTG-700 board
- FMC Debug Module
- 12V/6A wall power supply (for stand-along operation)
Software:
- PCI Express Drivers (evolution) for Windows & Linux
Reference Designs/Demos:
- PCI Express Gen2 PIO
- 10G & 40G Ethernet
- DDR3 Memory Controller
- ChipScope PRO IBERT (serial transceivers used for PCI Express, SMAs, and
  FMC connectors)
- PCI Express DMA demo
Documents:
- Hardware Setup Guide
- User Manual
- Schematics (in searchable .pdf format)
- User Constraint File (UCF)

►Ordering information

Part Numbers:

- HTG-V7-PCIE-2000 Price: Contact Us
- HTG-V7-PCIE-690   Price: Contact us

Accessories & Tools

FMC daughter card with  one QSFP+ and two SFP+ connectors with default clocks for CPRI/OBSAI (other clocks can also be supported)
Part Number:
HTG-FMC-SFP-OC
Price:$795
FMC daughter card with two SFP+ connectors, two 10Gbps physical layer transceivers which provide full PCS, PMA, and XGXS sub-layer functionality


Part Number:
HTG-FMC-SFP-PLUS
Price:$895


FMC daughter card with two CX4/Infiniband connectors providing access to two 10Gig ports



Part Number:
 HTG-FMC-2CX4
Price: $595


FMC daughter card with one CX4, two SATA, and two SMA ports




Part Number:
HTG-FMC-CX4-SATA-SMA
Price: $545
FMC daughter card with x8 PCI Express Root interface




Part Number:
 HTG-FMC-PCIE-RC
Price: $695
FMC daughter card with 8 SMA ports and pin headers providing access to 33 LVDS/66 Single-ended IOs
Part Number:
HTG-FMC-SMA-LVDS
Price: $595

FMC daughter card with four SFP/SFP+ and four SATAI/II/III connectors.

Part Number:
HTG-FMC-4SFP-4STA
Price:$695


FMC daughter card with 32 SMA connectors for 8 serial transceiver ports, two SMA connectors for external clock, and on-board super clocks

Part Number:
HTG-FMC-X8SMA
Price:$695
16-bit Dual Channel DA/AD Conversion Module
Part Number:
HTG-FMC-AD-DA-MDL
Price:$1,795		 FMC daughter card with four RJ45 ports (SGMII mode only)

Part Number:
HTG-FMC-SGMII
Price:$795
FMC to FMC Cable for board-to-board connection

Part #:
FMC-TO-FMC-9
(9" length)
 FMC-TO-FMC-5
(5" length)
PCI Express Test Module & Serial IO Expander
Part Number:
HTG-PCIE-TEST
Price: $695
