Xilinx Virtex™ -6 HXT 16-lane PCI Express Optical Network Card






l

Powered by Xilinx Virtex-6 HX380T or HX565T FPGA, this optical network card provides access to sixteen lanes of PCI Express Gen 2 (64 Gbps raw data throughput), two SFP+  & two QSFP+ optical connectors (100 Gbps), up to 16 GB of DDR3 SO-DIMM, QDR II, ten 11.18 Gbps  and ten 6.6Gbps serial ports. The on-board FPGA Mezzanine Connectors (FMC) along with off-the-shelf FMC modules, expend the functionality of the board for variety of different applications.

One QSFP+ port is powered by two external PHY chips (with Electrical Dispersion Compensation) supporting short range, medium range, and long range optical interfaces. The second QSFP+ port along with two additional single SFP+ ports are connected directly to the GTH serial transceivers of the on-board FPGA (also tested by Xilinx 40Gig Ethernet MAC/PCS IP core)

Features:
Xilinx HX380T or HX565T FPGA
X16 PCI Express Edge Connector
X1 QSFP+ port with EDC support through external PHY chips
X1 QSFP+ port with direct interface to the on-board  FPGA's GTH (10G) serial transceivers- or x4 SFP+ ports using the Avago QSFP+ to SFP+ conversion module
X2 SFP+ ports with direct interface to the on-board  FPGA's GTH (10G) serial transceivers
X2 DDR-3 SODIMM (up to 16GB)
X2 QDR-II Components (each 4Mx18)
X1 SMA Port (10G)
X2 FMC Connectors
  - FMC #B: 34 LVDS IOs and 10 GTX (6.6 Gbps) Serial IOs
  - FMC #A:  9 LVDS IOs and 10 GTH (11.18 Gbps) Serial IOs
Configuration through JTAG , Micron G18 flash, or CPLD+ Xilinx Flash
  USB to UART
  ATX and DC power supplies for PCI Express and stand alone operations
  LEDs & Pushbuttons
Size: 9.5" x 4.25"
Software:
-
PCI Express Driver Source Code (C) - Windows XP or Linux

- PCI Express Back End (High Performance DMA Engine)

Kit Content:
- HTG-V6HXT-X16PCIE Board
- Hardware Setup Guide
- CD ROM with User Manual, Schematics (in searchable pdf format) , Software Drivers (eval.), Xilinx 40Gig Ethernet reference demo, PCI Express Gen 2 CoreGen PIO design , ChipScope PRO IBERT reference/test designs, Xilinx MIG based DDR3 and QDRII memory controllers

Ordering information
Part Numbers:
-
HTG-V6HXT-X16PCIE-380
(populated with XC6VHX380T-2FFG1923C FPGA)
-
HTG-V6HXT-X16PCIE-565
(populated with XC6VHX565T-2FFG1923C FPGA)

Price:
Contact Us

Reference Designs:

Extensible FPGA Framework (EFW) provides a verified set of productivity solutions, including module targeted physical interface components, device drivers and APIs for the HTG-V6HXT-X16PCIE platform. The EFW enables end user to skip the tedious and time consuming phase of the platform's bring-up by providing targeted and hardware verified physical interfaces.

Additionally, the framework allows users to simulate, integrate and test Ethernet and DMA cores (licensed separately) in their designs with time limited synthesizable binaries and simulation libraries.

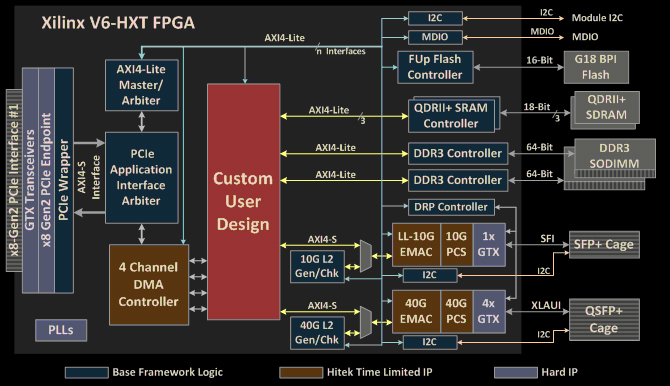

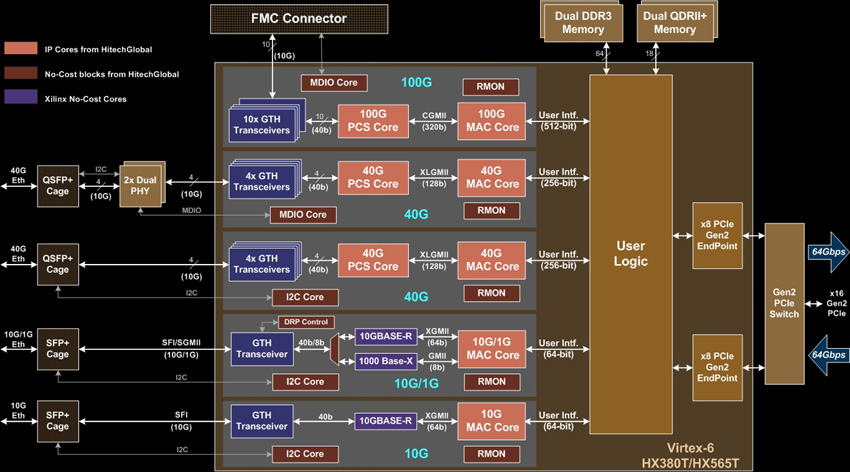

Following figure shows the elements and interfaces of the framework.






The base framework provides all the design files, device drivers and API to access the memory mapped registers inside the FPGA. It enables an end user to instantiate and control custom logic blocks through the GUI application.

Another key feature of the base EFW is the capability to program and erase the G18 BPI memory on the HTG-V6H-x16PCIE through the PCIe interface at very high speeds. Integrating the field upgradeable controller allows any user design to be field upgradable through PCIe. It can also eliminate the need for the USB platform cable during the design and development phase.

The base framework also provides the targeted (MIG generated) wrapper for the 1066Mbps (533MHz) DDR3 and 350MHz QDRII+ controllers. Memory mapped MDIO and I2C controllers are also integrated in the EFW to control and configure the PHYs and clock elements on HTG-V6H-x16PCIE module.

EFW also serves as the evaluation platform for the 10G low-latency and 40G Ethernet IP solutions. It allows the user to test the 10G and 40G Ethernet interface capabilities of the HTG-V6H-x16PCIE without any code development. User can then extend the Ethernet interfaces to user specific designs through the industry standard AXI4-Streaming interface. Full simulation libraries included in the EFW enables the user to simulate and test the Ethernet interfaces before licensing the solutions.

EFW’s integrated (time limited) 4-channel 128-bit data path (@ 250MHz) block DMA controller along with the PCIe device drivers allows the user to implement and verify high speed data and packet applications on the HTG-V6H-x16PCIE module.

Key Features

·   Framework includes module targeted  and hardware verified RTL blocks for:

o  x8 PCIe Gen2 hard IP block with PCIe application interface and arbiter (for FPGA PCIe port1 only)

o  AXI4-Lite master/arbiter for distributed control and configuration of various EFW blocks

o  Two 1066Mbps/533MHz DDR3 controllers

o  Two 350 MHz QDRII+ controllers

o  Field upgradeable flash (FUp) controller for in-system field upgrade of the FPGA image through PCIe interface

o  MDIO and I2C controllers

o  DRP controller for run-time control and configuration of the GTH Transceivers

·   Time limited (30min) synthesizable binaries and full simulation libraries for hardware verified Ethernet solutions up to 40Gbps:

o  40Gbps Ethernet using the direct QSFP+ interface on the module

o  10Gbps Low Latency Ethernet using the SFP+ interface on the module

·   Time limited (30min) synthesizable binaries and full simulation libraries for  hardware verified Multi-channel (4) 128-bit data path scatter-gather block DMA controller

·   All modules with industry standard AXI-4 streaming interface for data path and AXI-4 Lite interface for control, configuration and memory interface

·   Top level RTL interface wrapper for custom user design block for easy implementation of user logic

·   Linux device drivers and API for PCIe interface

·   A single unified GUI for entire EFW with scripting support



Accessories & Tools


FMC daughter card with  one QSFP+ and two SFP+ connectors with default clocks for CPRI/OBSAI (other clocks can also be supported)
Part Number:
HTG-FMC-SFP-OC
Price:$795


FMC daughter card with two SFP+ connectors, two 10Gbps physical layer transceivers which provide full PCS, PMA, and XGXS sub-layer functionality


Part Number:
HTG-FMC-SFP-PLUS
Price:$895


FMC daughter card with two CX4/Infiniband connectors providing access to two 10Gig ports



Part Number:
 HTG-FMC-2CX4
Price: $595


FMC daughter card with one CX4, two SATA, and two SMA ports




Part Number:
HTG-FMC-CX4-SATA-SMA
Price: $545

FMC daughter card with x8 PCI Express Root interface




Part Number:
 HTG-FMC-PCIE-RC
Price: $695

FMC daughter card with 8 SMA ports and pin headers providing access to 33 LVDS/66 Single-ended IOs
Part Number:
HTG-FMC-SMA-LVDS
Price: $595

FMC daughter card with four SFP/SFP+ and four SATAI/II/III connectors.

Part Number:

HTG-FMC-4SFP-4STA
Price:$695


FMC daughter card with 32 SMA connectors for 8 serial transceiver ports, two SMA connectors for external clock, and on-board super clocks

Part Number:
HTG-FMC-X8SMA
Price:$695


FMC to FMC Cable

Part #: FMC-TO-FMC-9 (9" length)
 FMC-TO-FMC-5
(5" length)

FPGA Programming Cable (USB)
Part #: HW-USB
 Price:
$
225

QSFP+ Transceiver
