DDR SDRAM Controller IP Core

Overview:

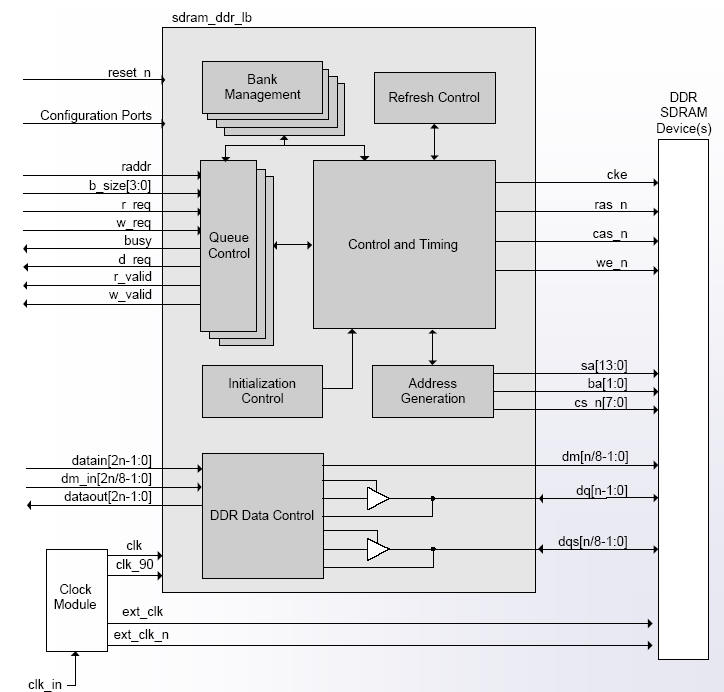

The Double Data Rate (DDR) SDRAM Controller Core is designed for use in applications requiring high memory throughput, high clock rates and full programmability.

The core accepts commands using a simple local interface and translates them to the command sequences required by DDR SDRAM devices. The core also performs all initialization and refresh functions.

The core uses bank management techniques to monitor the status of each SDRAM bank. Banks are only opened or closed when necessary, minimizing access delays. Up to eight banks can be managed at one time. A command queuing interface is used enabling multiple, random address requests to be queued up, each with lengths as short as 2 DDR data cycles. This architecture provides optimal bandwidth utilization both for cases of short transfers to highly random address locations as well as cases of longer transfers to contiguous address space.

The core is provided with run-time programmable inputs for all timing parameters (tCL, tRC, tRCD, tRP, tMRD, tRRD, tRFC, tRAS) as well as memory configuration and refresh period settings. This ensures compatibility with all DDR SDRAM configurations.

Three optional add-on modules are available:

  • Error Correction Coding (ECC) Module - Provides single bit correction and double bit detection

  • Read-Modify-Write Module (RMW) - Enables partial word writes when using ECC

  • Multi-Burst Module - Enables long burst length requests and handles address alignment for requests not aligned to the
    boundaries of the programmed burst length

DDR SDRAM Controller IP Core Features:

  • Command queuing and bank management enable up to 100% memory throughput
  • Supports auto-precharge commands for optimum random access performance
  • Achieves high clock rates with minimal routing constraints
  • Supports all standard DDR SDRAM chips and DIMMs
  • Run-time configurable timing parameters and memory settings
  • A variety of read capture options are supported
  • Automatic generation of initialization and refresh sequences
  • ECC, RMW and Multi-Burst add-on modules available
  • Supports self-refresh and power down modes
  • Source code available
  • Customization and Integration services available



 Data Rate (Per Pin)  Clock Rate   Size
 Virtex-4    400 Mbit/s    200 MHz    920 Slices
 Spartan-3    267Mbit/s   133 MHz    920 Slices
 Virtex-II Pro    333 Mbit/s   167 MHz    920 Slices
 Virtex-II    333 Mbit/s    167 MHz    920 Slices

   Data Rate (Per Pin)  Clock Rate   Size
 Cyclone II    333 Mbit/s    167 MHz    1,950 LEs
 Stratix II    400 Mbit/s    200 MHz    1,950 LEs
 Stratix    400 Mbit/s    200 MHz    1,950 LEs     Xilinx Virtex-II Pro DDR Evaluation Board
 Cyclon 267 Mbits/s 133 MHz 1,950



 Data Rate (Per Pin)  Clock Rate   Size
XP 333 Mbit/s 167 MHz 920 Slices
ECP 400 Mbit/s 200 MHz 920 Slices
EC 400 Mbit/s 200 MHz 920 Slices

 Device    Data Rate (Per Pin)  Clock Rate   Size
 ASIC    >800 Mbit/s    >400 MHz    13,700 Gates

IP Core Deliverables:
· Core (Netlist or Source Code)
· Comprehensive Verification Suite (Source Code)
· Complete Documentation
· Expert Technical Support & Maintenance Updates

Price: Quote Me
