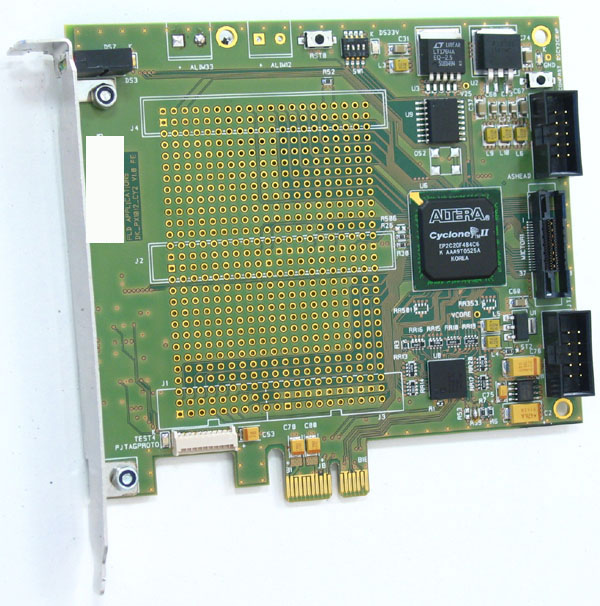

Altera Cyclone 2 PCI Express Development Board





Applications
• Platform to quickly start client design
• Means to explore PCIe protocol
• ASIC / FPGA prototyping

Benefits
• Reduce Costs:
   o Targets low-cost Altera FPGA families
   o Includes PCI-SIG® compliant IP Core for PCIe
• Secure & Proven Solution:
   o PCI-SIG® Compliant board
   o PCI-SIG Compliant IP Core (low gate count)
   o Extensive Validation testing
• Minimize time to market:
   o PHILIPS PX1012A PHY integrated and proven
   o Includes IP Controller designed specifically for the PX1012A
   o Includes Software Design Kit (SDK)
   o Support directly from the IP design team

Features:

• PCI Express x1 Endpoint add-in board
• Altera Cyclone™ II based (EP2C50F484C7N)
• Philips PX1012A PCIe PHY
• x1 End Point IP controller for PCI Express
(low gate count)
• PCI Express 1.0a compliant
• External connections
   o x1 PCIe male connector
   o LEDs, switches, user I/Os
   o High-speed Mictor® connectors
   o Prototyping matrix for daughter card extension (100 MHz, 75 signals)
   o Santa Cruz
• Programmable FPGA via a JTAG connector

Deliverables:

 • Cyclone II  Design Kit board
• EZ IP Core for PCIe (The board version comes standard with the EZ Core.)
• Software Development Kit (SDK)
   o Drivers (eval)
   o API
   o Application tools
• Complete technical documentation
• Technical support and maintenance provided directly by the design team
Part Number, Price, & Availability:

DK-PX1012-CY2  : $1,300

Order Entry:  Now
