Advanced Altera Stratix PCI-X/PCI Development Kit
32/64-bit ~ 33/66/133 MHz

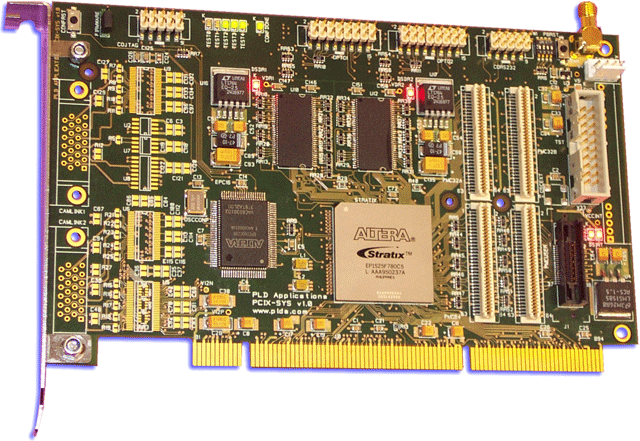

The Advanced Stratix™ PCI-X/PCI Development Kit provides systems designers with the only solution available today to unleash Altera’s Stratix FPGA power. Featuring a PCI-X board capable of reaching the 1 GB/s data transfer rate at 133MHz, and embedding 128 MB of DDR SDRAM and other additional I/Os, this development kit will prove to be the perfect tool for setting up data- and bandwidth-greedy processing and prototyping applications.




PCI Features:
- PCI short card form factor
- 3.3volt only PCI board
- 32bit and 64bit PCI/PCIX operation
- Operates on 33Mhz and 66Mhz PCI bus
- Operates on 66Mhz and 133Mhz PCIX bus
- Includes PLD Applications 32/64bit PCI/PCIX and DDR SDRAM controller IP cores free license for exclusive use with the PCIX SYS boards.

Technology:
ALTERA® STRATIX FPGA including
    - EP1S10F780
    - EP1S20F780
    - EP1S25F780
    - EP1S30F780

Software:
- JamPCI configuration software
- Software kit with GUI applications for monitoring and exercising PCIX SYS board
- Software development kit including PCI device driver

Daughter Cards:
Various standard daughter cards available (prototyping breadboard, Fiber optics, Gigabit communication, …

Configuration:
ALTERA® EPC16 device configuration via:
ALTERA® ByteBlaster (JTAG chain) or   PLDA JAM PCI Module (Configuration via the PCI bus)
2 different configurations can be stored in the EPC16.

Features:
- 32/64bit PCI Mezzanine Card extension (PMC32/64) available
- PMC USER / Mictor / IDC headers
- 2 independent 4M*32bit DDR SDRAM banks
- 2 base or 1 medium/full Cameralink interface
- 4 user LEDs
- 4 user dedicated switches
- 1 user reset button
- 1 local oscillator
- 1 SMA input for external clock or triggering
- 1 local poweronreset with power supply monitoring capabilities
- 2 RS232 serial ports
- 8 optocoupled inputs for triggering
- 8 optocoupled outputs for triggering

Options:

  • Full Cameralink only

Development Kit Contents:
The Advanced Altera Stratix PCI-X/PCI Development Kit includes:

  • PCI-X SYS Board
  • Power supply for stand-alone mode
  • 32/64-bit PCI-X IP, 32/64-bit PCI, and DDR SDRAM controller core (free license for exclusive use with the board)
  • Complete set of documentation
  • Getting Started Guide & reference designs on installation CD

  • Software Development Kit for Windows 95/98/NT/2000/XP
    - PCI device driver evaluation Version (full version available from Jungo)
    - API and GUI source codes
    - PCI exerciser software

Ordering Part Numbers:

PCIXSYS20-KIT (with EP1S20F780C5 device)
Price: $ 2,990  [Buy Online]

PCIXSYS30-KIT (with  E P1S30F780C5 device)
Price: $ 3,990  [Buy Online]
