Xilinx Virtex 4 Virtex II 2 Pro boards

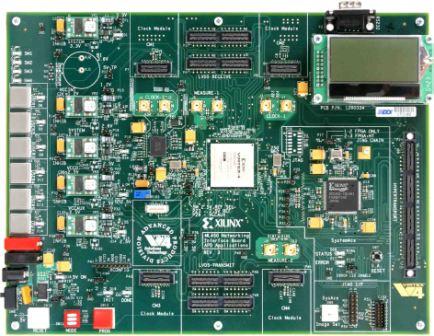

[SPI 4.2 IP Core] [RapidIO IP Core] [HyperTransport IP Core] [ISE Tool] [IP Cores Center] Part #: HW-V4-ML450 Price: $2,262 [How To Buy]	Overview: The Virtex-4™ ML450 board based source synchronous interfaces tool kit is populated with the Virtex-4 XC4VLX25FF668 device. The tool kit enables fast and easy design of standards such as SPI-4.2, SFI-4, XSBI, RapidIO, HyperTransport, and other LVDS interfaces. The ML450 board provides up to 40 channels each of LVDS Tx and Rx. The Ml450 board enables different frequencies for different reference clocks with 4 precision clock module options including saw oscillators and wide frequency range (25-700 MHz). More Networking and interface IP Cores are available at HiTech Global IP Center
	Key Features: - Xilinx Device: XC4VLX25 FF668 (Product Table) - 40 Tx and 40 Rx LVDS channels to evaluate popular interfaces - SystemACE Compact Flash card (256 Mb) - Clock Sources (8) - Connectors compatible with industry leading ASSPs DDR1 SDRAM - LCD and LED displays - On-board voltage margin testing with multiple voltage regulators - Verification and Debug capabilities - User push buttons (6) connected to FPGA pins	Kit Content: - ML450 Development Board - Clock module adapters (4) - AC line cord (localized to USA, UK, or EC) - - Precision LVDS cables (2 sets, 40 channels) - RS-232 serial interface cable, AC/DC connector - SystemACE Compact Flash card (256 Mb) - - Documentation and Design CD - Free ISE and ChipScope Pro evaluation CDs

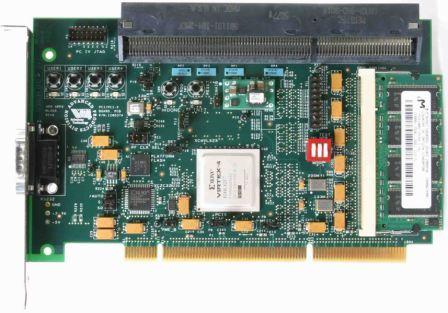

[PCIx IP Core] [ISE Tool] [IP Cores Center] Part #: HW-V4-ML455 Price: $1,200 [How To Buy]	Overview: The Virtex-4™ ML455 development kit is a PCI/PCI-X LogiCORE™ development platform based on the Virtex-4 LX-25 device XC4VLX25-FF668-11C. This development kit enables fast and easy implementation of designs based on the PCI and PCI-X standards. The LogiCORE v3.0 PCI 64-bit interface is compliant with the PCI Local Bus Specification, v3.0. The LogiCORE v5.0 PCI-X 64-bit interface is compliant with the PCI Local Bus Specification, v3.0, and the PCI-X Addendum, v2.0. The Xilinx PCI and PCI-X interface cores are pre-implemented and fully tested modules for Xilinx FPGA. The ML455 board plugs into a 3.3V-keyed PCI or PCI-X system slot. The PCIX IP Core offered through HiTech Global can also be used with this board
	Key Features: - Xilinx Device: XC4VLX25-FF668 (Product Table) - 200-pin, 2.5V SODIMM socket with 128 MB (16M x 64 bit) DDR SDRAM SODIMM - Epson 200 MHz 2.5V differential LVPECL FPGA IDELAY reference oscillator - Epson 133 MHz 2.5V differential LVDS oscillator for PCI-X designs and DDR SDRAM memory interface - Epson 33 MHz 3.3V single-ended LVCMOS oscillator available as an optional configuration clock for Platform Flash - One DB9-M RS232 port - 64-bit 3.3V-keyed PCI or PCI-X edge connector - 64-bit 3.3V-keyed PCI or PCI-X socket mounted along top edge of the board	- 16-bit GPIO port - Support for up to four FPGA design images in a Xilinx XCF32PFS48C Platform Flash PROM - Static or dynamic device configuration support with XC2C32 - CoolRunner-II CPLD and XCF32PFS48C Platform Flash - JTAG configuration header , Xilinx Parallel Cable IV and Platform USB cable compatible Kit Content: - ML455 board - ML455 CD - ISE evaluation kit (latest) - ChipScope Pro evaluation kit - Jungo PCIX driver development evaluation kit

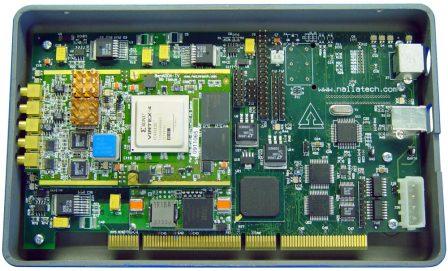

[Xilinx DSP System Generator] [ISE Tool] [More DSP Modules] [More DSP Systems] [IP Cores Center] Part #: DO-DI-DSP-DK4 Price: $2,495 [How To Buy]	Overview: The XtremeDSP Development Kit provides a complete platform for high-performance signal processing applications such as Software Defined Radio, 3G Wireless, Networking, HDTV and Video Imaging. This kit features dual-channel high-performance ADCs and DACs, a user programmable Virtex-4 FPGA, and is fully supported by Xilinx System Generator for Hardware co-simulation.
	Key Features: - Xilinx Device: XC4SX35-10FF668 (Product Table) - 2 independent ADC channels: AD6645 ADC (14-bits up to 105 MSPS) - 2 independent DAC channels: AD9772 DAC (14-bits up to 160MSPS) - Support for external clock, on board oscillator and programmable clocks - Two banks of ZBT-SRAM (133MHz, 512Kx32 bits per bank) - Status LEDs - Host interfacing via 3.3V/5V PCI 32 bit/33-MHz or USB v1.1, or JTAG	Kit Content: - External power supply (US Mains cable with separate UK, European or Australian mains adaptors) - USB v1.1 compatible cable, 2 meters long - 5 MCX to BNC cables for connecting to the ADC / DAC and external clock connectors - PCI backplate and 2 screws - 2x BNC jack to jack adaptors for use in loop back configurations - Nallatech FUSE (Field Upgradeable Systems Environment) Software CD - XtremeDSP Development Kit Pro CD that provides documentation, hardware support files and design examples - Optional Nallatech evaluation software - Carrying Case

[DDR 2 IP Core] [DDR IP Core] [RLDRAM 2 IP Core] [Multi-Burst Module] [FCRAM IP Core] [ECC Module] [Read-Modify-Write Module] [ISE Tool] [IP Cores Center] Part #: HW-V4-ML461 Price: $5,995 [How To Buy]	Overview: The Virtex-4™ ML461 Memory interface development board is designed to support all popular memory interfaces including DDR2- 267MHz, DDR SDRAM-200MHz, QDR II SRAM- 300MHz, RLDRAM II-300MHz, FCRAM II-300MHz. FPGA gates can be used for implementation of different memory controllers. HiTech Global provides IP cores for DDR 2, DDR, SDR, FCRAM, RLDRAM 2, ECC, Read-Modify-Write, and Multi-Burst Modules.
	Key Features: - Xilinx Device: Four XC4VLX25 (Product Table) - Each FPGA supports one or two different memroy interface type(s) - FPGA #1 : Connected to DDR I DIMM & Component - FPGA #2: Connected to DDR II DIMM & Component - FPGA # 3: Connected to QDR II and FCRAM II -FPGA # 4: Connected to RLDRAM II - SystemACE & CompactFlash Controller -LCD Display -Parallel 4 Port (for FPGA configuration) 2 Z-DOK connectors (provides access to ML310 board)	Kit Content: - ML41 Board - 5V/6.5A Power Supply - RS232 Serial Cable, DB9-F to DB9-F - CD with Application Notes, Reference Design, and User guide

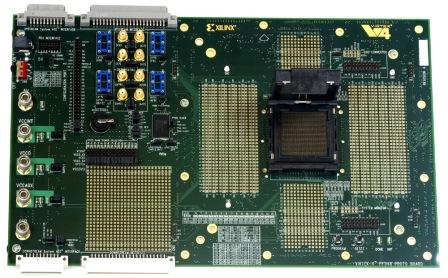

[ISE Tool] [IP Cores Center] Part #: HW-AFX-FF668-400 Price: $1,200 HW-AFX-FF1148-400 Price: $2,100 HW-AFX-FF1513-400 Price: $2,295 HW-AFX-SF363-400 Price: $1,095 [How To Buy]	Overview: The AFX-FF668-400, FF1148, FF1513, and SF363 platforms provide access to different virtex-4 FPGA signals for performing functional tests and general evaluation. Each board is populated with a mounted ZIF sockets to host corresponding package type. AFX-FF668-400 supports LX15, LX25, LX40, LX60, SX25, and SX35 AFX-FF1148-400 supports LX40, LX60, LX80, LX100, LX160, and SX35 AFX-FF1513-400 supports LX100, LX160, and LX200 AFX-SF363-400 support LX15 and LX25 Virtex-4 Product Table
	Key Features: - Support Xilinx Virtex-4 LX and SX devices in different packages (Product Table) - Clocks: 32 clock inputs (4 differential clock pairs, 4 LVTTL-type oscillator sockets, and 20 breakout clock pins) - Memory: Onboard Platform Flash ISPROM (32 Mb) for configuration - Connectors and Interfaces: One Downstream and one Upstream Interface, PC4, Configuration Port, JTAG Chain, one Downstream and one Upstream System ACE interface, and Prototyping Area	Kit Content: - Power supply - Documentation - Vacuum handling tool

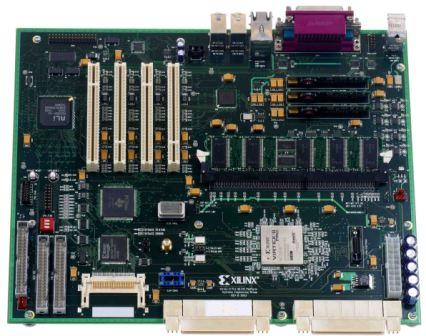

[Documentation] [ISE Tool] [IP Cores Center] Part #: HW-V2P-Ml310 Price: $2,495 [How To Buy]	Overview: The ML310 offers designers a Virtex-II Pro XC2VP30-based embedded platform for accelerated system development. In addition to more than 30,000 logic cells, over 2,400 Kb of BRAM, and dual PPC405 processors available in the FPGA, the ML310 provides onboard Ethernet MAC/PHY, DDR memory, multiple PCI slots, and standard PC I/O ports within an ATX form factor board. An integrated System ACE CF controller is deployed to perform board bring-up and to load applications from the included 512MB CompactFlash card.
	Key Features: - Xilinx Device: XC2VP30-FF1152 (Product table) -ALi Super I/O Chipset - One GPIO Connector - One Front Panel Connector - One CD ROM Connector - One FPGA UART Connector - CPU Reset Button - One SystemACE Reset Button - One DIP Switch - 256 MB DDR DIMM - 10 / 100 Ethernet - Two IDE Connectors - Two USB Ports,System ACE For Configuration - FPGA JTAG/Trace - CPU JTAG port - PC4 JTAG port - Two Serial Ports - One Parallel Port - Mouse & Keyboard	- LCD Character Display - Audio - Two 3.3 V and Two 5.0 V PCI Slots (total of 4) - Two Personality Module Connectors - One SMA Connector for External Clock - PCI Bridge - Two On-board Differential Oscillators (156.25 MHz & 125 MHz) - Two Clock Sockets Kit Content: - Xilinx Virtex-II Pro ML310 Platform (Note: Localized to US, UK, and EC) - 512 MB CompactFlash™ Memory Card - RS-232 Mini-Cable - LCD Character Display & Cable - 256 MB DDR DIMM - CD-ROM (ML310 documentation and tutorials) Power Supply (localized to U.S, UK, and EC)

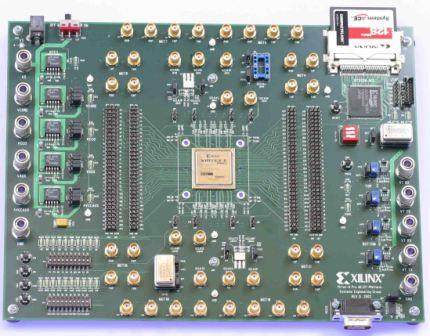

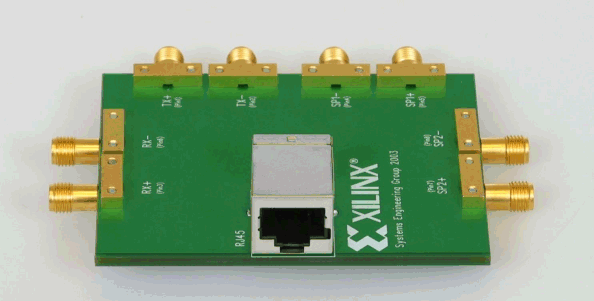

[ISE Tool] [IP Cores Center] Part #: HW-V2P-ML321 Price: $3,995 HW-V2P-ML323 Price: $4,495 HW-V2P-ML325 Price: $4,995 SMA-TO-SATA (conversion Module) SMA-TO-SFP (conversion Module) SMA-TO-HSSDC2 (conversion Module) SMA-TO-RJ45 (conversion Module) [How To Buy]	Overview: The ML32x platforms are ideal for full and detailed characterization of the high speed IO channels. These boards are also ideal for demonstration of eye diagrams at different data rates (622 Mbps to 3.125 Gbps), pre emphasis levels (from 10% to 33%) and TX differential voltage swings (400mV to 800mV). Each RocketIO MGT transceiver is connected to 4 SMA connectors.
	Key Features: - Xilinx Device: XC2VP7-FF672 (ML321) XC2VP50-FF1152 (ML323) XC2VP70-FF1704 (Ml325) (Product table) - Two differential oscillators (156.25 MHz) - Four pairs of 50 Ohm SMA connectors for external clock - Two Single-Ended SMA Clocks - Two crystal oscillator sockets (FPGA clock) - 4 SMA connectors for each RocketIO channel - JTAG configuration port for use with Parallel Cable III and IV - Serial port - System ACE with 16 MB of compact Flash memory - General purpose DIP switches, LEDs, and push buttons - On-board power supplies for all necessary voltages capable of supplying 2A each	- Supports HSSDC2, SFP, RJ45, and SATA conversion modules (optional)


		Kit Content: - Virtex-II Pro ML32x Characterization Board - 4 SMA To SMA Cables - Serial Port Cable - 5V Power Supply - FR4 Loopback Board - CD ROM (User Guide, Schematics, Reference Design Guide, etc.) - User Guide - 16MB Compact Flash Card (containing the BERT reference design)

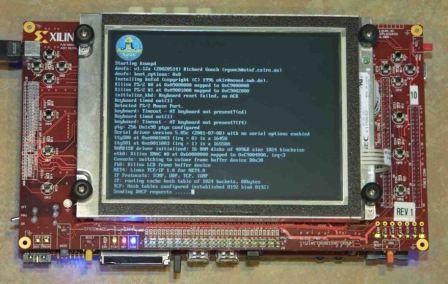

[ISE Tool] [IP Cores Center] Part #: HW-V2P-ML300 Price: $1,695 [How To Buy]	Overview: The ML300 Evaluation Platform allows designers to investigate and experiment with features of the Virtex-II Pro FPGA. The Evaluation Platform is an ideal development platform for implementing designs using PowerPC 405 processors, Rocket I/O transceivers, IP cores, and other high performance Virtex-II Pro FPGA features.
	Key Features: - Xilinx Devices: XC2VP7FF672 (Product table) - MontaVista Linux Professional Edition, WindRiver VxWorks RTOS - 128 MB DRAM DDR, IBM MicroDrive - 10 / 100 Ethernet, 4 ports of Optical Gigabit Ethernet (serial transceiver), 2 - PS/2, JTAG port, IEEE 1394 support, Serial port, IEEE1284 Parallel port, IIC EEPROM, temperature sensors, digital potentiom, SPI EEPROM, Interface with 1GB MicroDrive for FPGA configuration - 6.4 inch VGA TFT LCD with integrated Touch Screen - Headphone, 2 - CardBus / PC Card, 32 / 33 PCI Mezzanine, 2 Serial ATA Connectors, 2 HSSDC2 Connectors (serial transceiver) - PCI Bridge, 10 / 100 MAC / PHY, LM76 temperature sensor, AC97 audio CODEC with 1 Watt power amp	Kit Content: - ML300 evaluation board (localized to US, UK, or EC) - ISE Design Tools (PC evaluation version) - ChipScope Pro (hardware debug tools) - Platform Studio and the EDK (Embedded Development Kit) - Hardware and software demonstrations of Linux, VxWorks, and stand alone applications are included on a 1 GB Compact Flash hard disk. - Cables (Parallel IV, Ethernet, Fiber Optic, 1394, ATA, HSSDC2, etc.) IP Cores: OPB UART 16550, OPB IIC (eval.)

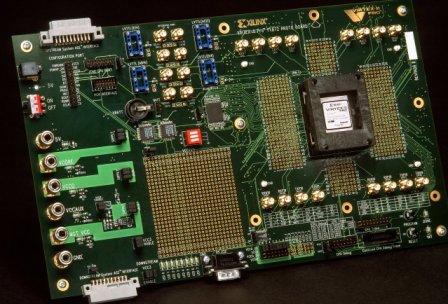

[ISE Tool] [IP Cores Center] Part #: HW-AFX-FG456-300 Price: $1,495 HW-AFX-FF672-300 Price: $1,595 HW-AFX-FF1152-300 Price: $1,695 [How To Buy]	Overview: The AFX-FG456 , FF672, and FF1152 platforms provide access to different Virtex-II Pro FPGA signals for performing functional tests and general evaluation. Each board is populated with a mounted ZIF sockets to host corresponding package type. FG456 supports 2VP2, 2VP4, and 2VP7 devices FF672 supports 2VP2, 2VP4, and 2VP7 devices FF1152 supports 2VP20,2VP30,2VP40, and 2VP50 devices
	Key Features: - Support Xilinx Virtex-II Pro devices in different packages (Product table) - Clocks: 32 clock inputs (4 differential clock pairs, 4 LVTTL-type oscillator sockets, and 20 breakout clock pins) - Memory: 8 MB (32-bit data width) SDRAM, Two onboard SPROMs (4 Mb each) for any configuration mode Onboard Platform Flash ISPROM (32 Mb) for configuration - Connectors and Interfaces: One Downstream and one Upstream Interface, PC4, Configuration Port, JTAG Chain, one Downstream and one Upstream System ACE interface, and Prototyping Area	Kit Content: - Power supply - Documentation - Vacuum handling tool - Four SMA-to-SMA coax cable assemblies - Headers for test points - 2 low-voltage, 14-pin, DIP crystal oscillators

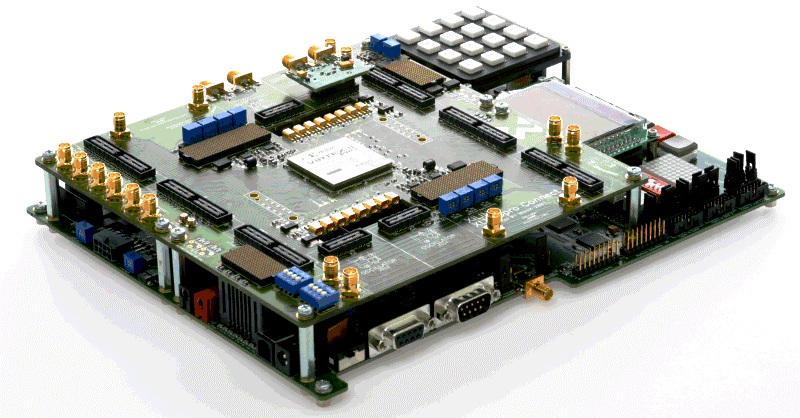

[ISE Tool] [IP Cores Center] Part #: HW-V2PRO-XLVDS Price: $5,495 [How To Buy]	Overview: The XLVDS board is made of 3 stackable boards. The "FPGA" board is populated with a 2VP20-FF896 device and carries the FPGA and I/O functionality. 8 Rocket I/O transceivers are used on the "FPGA" board. 4 transceivers are bonded to each other and the remaining 4 are routed to 8 pairs of MMCX connectors. The "PowerI/O" board contains the power supply, cable connections, fixed peripherals, and all FPGA programming logic. The "Clock" boards generate different frequencies for different reference clocks.
	Key Features: - Support Virtex-II Pro XC3VP20-FF896 (Product table) - 10 / 100 Ethernet - Samtech Connecters for LVDS - Cable-IV JTAG - PS2 - DCE and DTE - Telephone styled keypad (5x5 keys) - SMA - Two 5x7 matrix LEDs - Graphical LCD panel (132x64 pixels) - 125 MHz and 156.25MHz oscillators or external inputs - Clock boards for flexible clocking - Banana plug power supply - Dell power plug - Jack connection (Power supply) - Ubicom Phantom Server connection for JTAG or SelectMap configuration - 4 push buttons and 8 single LED - Battery for FPGA backup	Kit Content: - Virtex-II Pro XLVDS Board - Blue Ribbon Cable - Set of MMCX-MMCX Cables - Set of MMCX-SMA Cables - 4 Clock Source boards - CD ROM (Documentation, Schematics, User Manual, etc.)
