Xilinx FPGA board with SerDes transceivers @ 6.5 Gbps

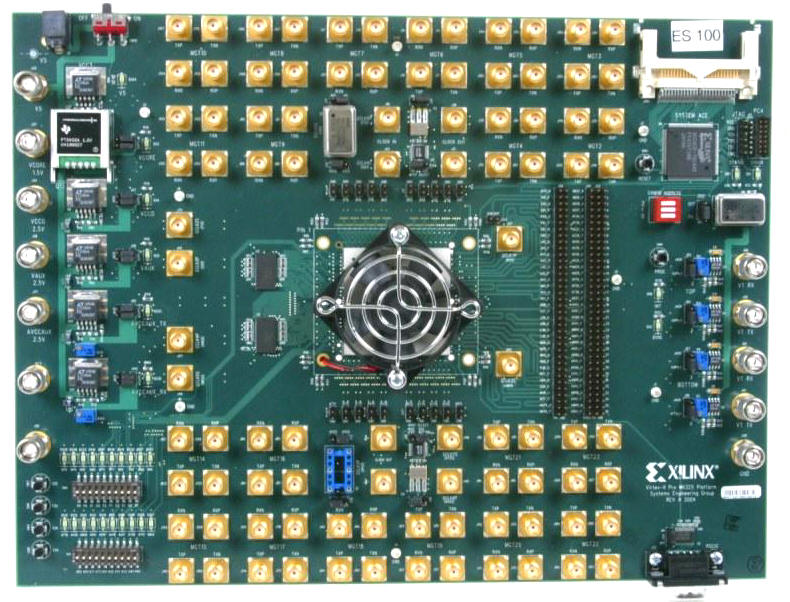

MK325 (with XC2VP70X)

Xilinx Virtex-II Pro™X Platform FPGAs extend the current Virtex-II Pro family with two additional devices. These devices are the first FPGAs in the industry to incorporate 6.5 Gbps serial transceivers. With up to 20 RocketIO X Multi Gigabit Transceivers ranging from 2.488 Gbps to 6.5 Gbps per channel, Virtex-II ProX FPGAs offer the same features as the successful Virtex-II Pro family, and provide a seamless migration path for higher performance serial applications.

The MK322 (populated with XC2VP20X) and MK325 ( populated with XC2VP70X) platforms allow designers to investigate and experiment with the features of the Virtex-II ProX Rocket I/O Multi Gigabit Transceivers. The MK322 and MK325 are official platforms for full and detailed characterization of the high speed IO channels of Virtex-II ProX devices and meet the highest signal integrity standards.

Features: • Virtex-II ProX FPGA • On-board power supplies for all necessary voltages capable of supplying 3A each • Power supply jacks for optional use of external power supplies • JTAG configuration port for use with Parallel Cable III and Parallel Cable IV cables • System ACE configuration controller • RS232 Serial Port • One 250-MHz and one 312 MHz differential clock oscillators • Two 2.5V/3.3V clock oscillator sockets • Two differential clock pairs with SMA connectors • Two single-ended clocks with SMA connectors • Two pairs of 36-position differentially routed headers with ground headers for parallel BERT cables • 16 or 40 pairs of SMA connectors for the RocketIO transceivers • Power indicator LEDs • General purpose DIP switches, LEDs, and push buttons
Kit Content: • Xilinx Virtex-II ProX MK325 platform • Transmission Line board • User guide • Four SMA-to-SMA coax cable assemblies • CD-ROM • RS232 cable • Power supply	- Part Number: HW-V2PX-MK325 (Populated with XC2VP70X) - Price: $ 6,995 - Availability: Now - Order Entry: Now - Optional Accessories: SMA to SMA 2' Cable - Part Number: SMA2SMA-2 - Price: $17.95 (each) DC Blocking Cap: - Part Number: DCBC-3085 - Price: $59 (each)
	Part #: SMA-TO-SATA Price: $395	Part #: SMA-TO-HSSDC2 Price: $465	Part #: SMA-TO-SFP Price: $290
