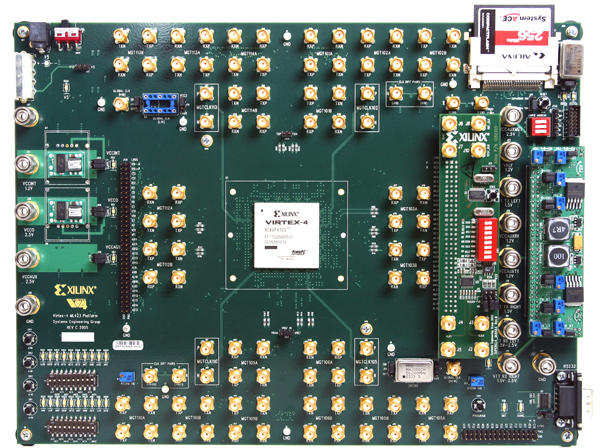

Xilinx Virtex-4 FX ML423 RocketIO board

The ML423 (populated with XC4VFX100-11FF1152C) allows designers to investigate and experiment with the features of the Virtex-4 Rocket I/O Multi Gigabit Transceivers. The ML423 is an official and ideal platform for full and detailed characterization of the high speed IO channels of Virtex-4 FX devices and meets the highest signal integrity standards.

Feature/Product	XC 4VFX12	XC 4VFX20	XC 4VFX40	XC 4VFX60	XC 4VFX100	XC 4VFX140
Logic Cells	12,312	19,224	41,904	56,880	94,896	142,128
Block RAM/FIFO w/ECC (18 kbits each)	36	68	144	232	376	552
Total Block RAM (kbits)	648	1224	2,592	4,176	6,768	9,936
Digital Clock Managers (DCM)	4	4	8	12	12	20
Phase-matched Clock Dividers (PMCD)	0	0	4	8	8	8
Max Differential I/O Pairs	160	160	224	288	384	448
XtremeDSP™ Slices	32	32	48	128	160	192
PowerPC Processor Blocks	1	1	2	2	2	2
10/100/1000 Ethernet MAC Blocks	2	2	4	4	4	4
RocketIO Serial Transceivers	0	8	12	12 or 16	20	24
Configuration Memory Bits	5,017,088	7,641,088	15,838,464	22,262,016	35,122,240	50,900,352
Max SelectIO	320	320	448	576	768	896

Features: • Virtex-4 FPGA (XC4VFX100-11FF1152C) • Onboard power supplies for all necessary voltages capable of supplying 1.5A to 6A • Power supply jacks for optional use of external power supplies • JTAG configuration port for use with Parallel Cable III and Parallel Cable IV cables • System ACE configuration controller • RS-232 serial port • MGT power supply module for supporting all transceiver power requirements • Two 2.5V/3.3V global clock oscillator sockets • Two single-ended global clock inputs with SMA connectors • Two differential global clock inputs with SMA connectors • Xilinx Generic Interface (XGI) • SuperClock module with XGI • 40 pairs of SMA connectors for the RocketIO transceivers (20 channels) • Power indicator LEDs • General purpose DIP switches, LEDs, and push buttons • One differential local clock input with SMAs • Four differential MGT clock inputs with SMAs			Kit Content: • Virtex 4 FX RocketIO™ characterization platform • User guide • Six SMA-to-SMA cable assemblies • System ACE™ CompactFlash memory card • RS-232 cable • Power supply module • SuperClock module • Power supply • SMA wrench
- Part Number: ML423 - Price: $ 4,495	- Optional Accessories:
	SMA-TO-SFP: $235	SMA-TO-SATA: $235	SMA-TO-HSSDC2: $289	SMA to SMA 2' Cable SMA2SMA-2 : $21(each)
