HTG-ZRF16: X16 ADC/X16 DAC Xilinx
Zynq® UltraScale+™ RFSoC Development Platform

Populated with one Xilinx ZYNQ  UltraScale+  RFSoC ZU29DR or ZU49DR the HTG-ZRF16 provides access to large  FPGA gate densities, sixteen ADC/DAC ports, expandable I/Os ports  and DDR4 memory for variety of different programmable applications.

The HTG-ZRF16 with the ZU29DR FPGA  is supported by sixteen 12-bit ADC (2.058 GSPS) and sixteen 14-bit DAC (6.554 GSPS) ports. The ADC and DAC ports are supported through high-performance micro Rf connectors. The ZU49DR model is supported by supported by sixteen 14-bit ADC (2.5 GSPS) and sixteen 14-bit DAC (10.0 GSPS) ports

The HTG-ZRF16 architecture allows easy and versatile functional expansion through one Vita 57.4 compliant High-Pin-Count FPGA Mezzanine Card (FMC+)  and large selection of daughter cards.

Two on-board 100Gbps QSFP28 connectors provide optical interfaces for effective processing of high-speed data in parallel with analog and digital conversions.

The HTG-ZRF16  is supported by one 72-bit ECC DDR4 SODIMM socket providing access to up to 16 GB of SDRAM memory.  The processor’s side is supported by up to 4GB of DDR4 memory (currently shipped with 2GB). The board is also supported by the HiTech Global 4GB Hybrid Memory Cube (HMC) FMC+ module for high-performance serial memory.

PCIE connectivity is available by using SMA cables, HTG-FMC-LVDS and HTG-X8-PCIE-EP modules.

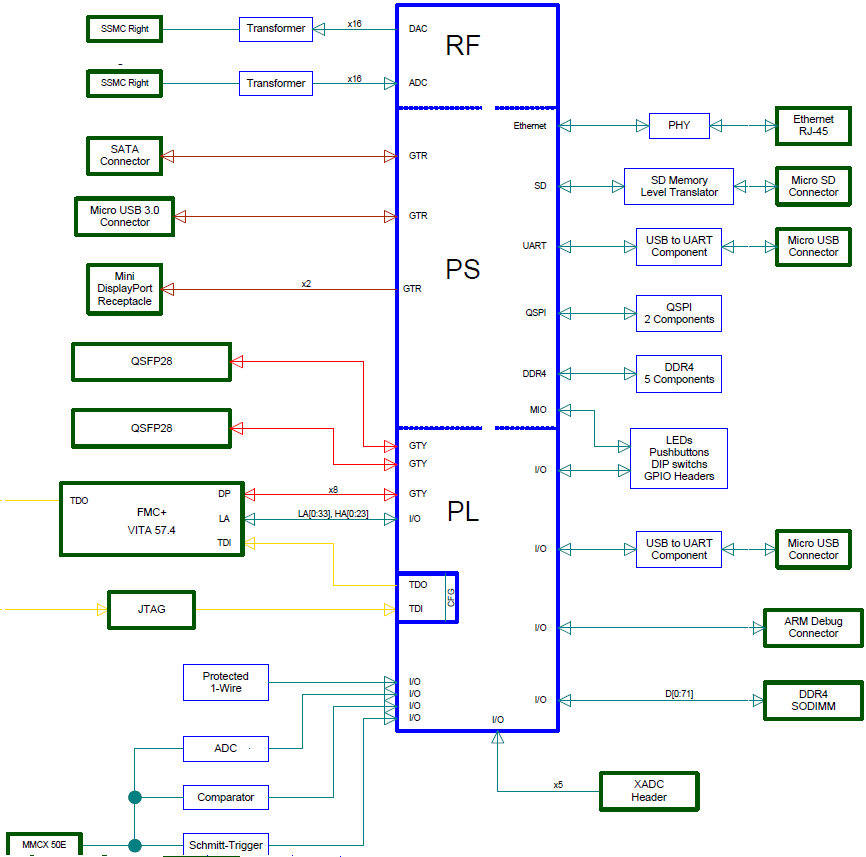

Main Features:

Xilinx Zynq UltraScale+ RFSoC ZU29DR or ZU49DR
x16ADC (12-bit /14-bit) ports
x16DAC (14-bit) ports
x2 QSFP28 (100Gig) ports
x1 Vita57.4 FPGA Mezzanine Connector (FMC+)  with 116 single-ended I/Os  and 8 GTY (32.75Gbps) Serial Transceivers
Independent DDR4 memory for the FPGA (up to 16GB SODIMM) and the ARM Processors (4GB components)
Configuration Flash
►x1 10/100/1000 Ethernet (RJ45) port (Processor side)
x1 MicroSD (Processor side)
x1 Display Port  (Processor side)
x1 USB 3.0 port (Processor side)
x1 SATA port (Processor side)
x2 USB/UART (FPGA and Processor)
Programmable Clocks & Jitter Cleaners (with default frequencies but programmable through I2C bus)
ARM Debug Header
FPGA JTAG Header
External Synchronous Clock port
Size: 8" x 7.8"

Kit Content:

Hardware:

-
HTG-ZRF16 Xilinx Zynq UltraScale+ RFSoC platform
-
Wall Power Supply
- User Manual
- Schematics (in searchable .pdf format)
- DDR4 reference design
- FPGA pinout
- 3D model (.step file)

Ordering & Availability Information

HTG-ZRF16-29
HTG-ZRF16-49

Price: [Contact Us]

12" SSMC To SMA Cable
24" SSMC To SMA Cable

1 Meter SSMC To SMA Cable
