HTG-AGLX5: Altera Agilex™ 5 "D" series  PCI Express Gen4 Platform

Coming soon!

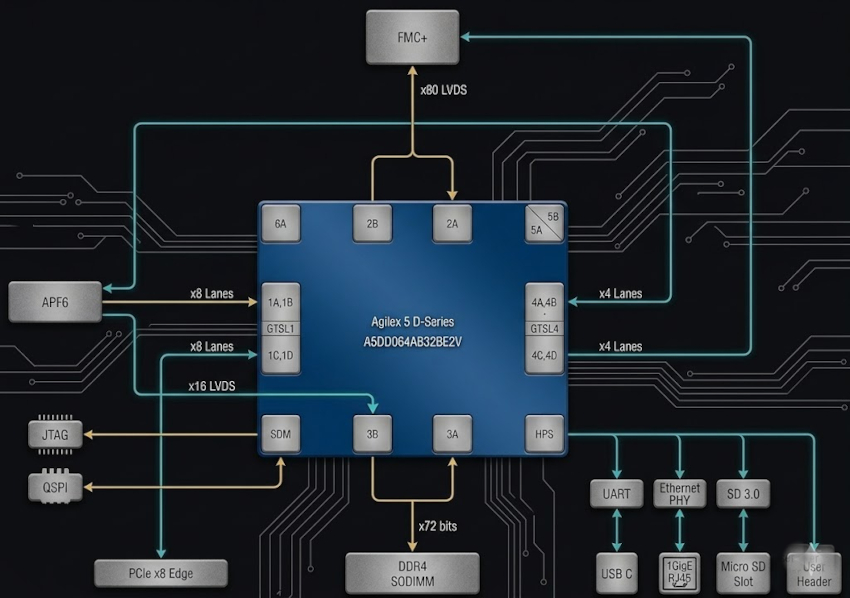

Populated with one Intel Agilex™ 5 "D" series FPGA, the HTG-AGLX5  platform provides access to high-performance FPGA gate densities, PCIE Express Gen4 connectivity, wide range of I/Os  and one expandable DDR4 memory SODDIM sockets for variety of different programmable applications.

The HTG-AGLX-5  architecture allows easy and versatile functional expansion through one Vita 57.4 compliant High-Pin-Count  FMC+ port. The FMC+ ports provide access to total of  380 LVDS I/O. The AcceleRate® ports provide access to 16  transceivers and 16 LVDS I/Os.

The HTG-AGLX-5 platform can be used in PCI Express (x8 Gen5) or  Standalone mode and powered through its 6-pin 12V Molex PCIe connectors.

Features:

►Populated with one A5DD064AB32BE2V Agilex 5 "D" series  FPGA
►x8 PCIE Gen4 end point connector
►x1 FMC+ expansion ports  with total of  x32 F-Title transceivers & x320 GPIOs
►x1 AcceleRate® expansion ports (APF6)  with x16  28G transceivers and 16 LVDS I/Os
►x1 72-bit SODIMM socket supporting up to 32GB of DDR4 memory (shipped with one 8GB SODIMMs)
►QSPI Flash for configuration
►x1 10/100/1000 Ethernet port
►x1 MicroSD socket
►x1 USB/UART port
►x1 Debug port
► Supports both PCI Express and Standalone operations

AcceleRate®  daughter cards /cables:

► x2 QSFP-DD
► 1.85 breakout card for four serial transceiver ports



 Kit Content:

Hardware:
- HTG-AGLX5 platform

Reference Designs/Demos:
- PCI Express
- DDR4 memory controllers

Documents:
- User Manual
- Schematics (in searchable .pdf format)
- FPGA Pinout File

Ordering information

Part Numbers:
-HTG-AGLX5

Price: Please contact us


1.85 Breakout Daughter Card (High-Speed Serial Transceivers )

Part Numbers:
HTG-APM6-X16-1.85

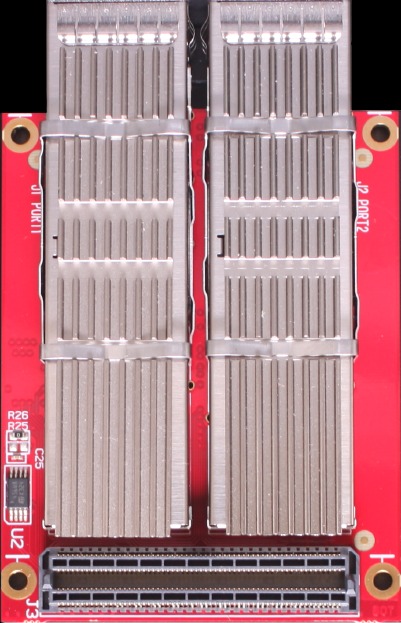

2-Port QSFP-DD /QSFP28/QSFP+ Daughter card

Part Numbers:
HTG-APM6-X2QSFP-DD

 Please contact us for your other daughter cards' requirements.
