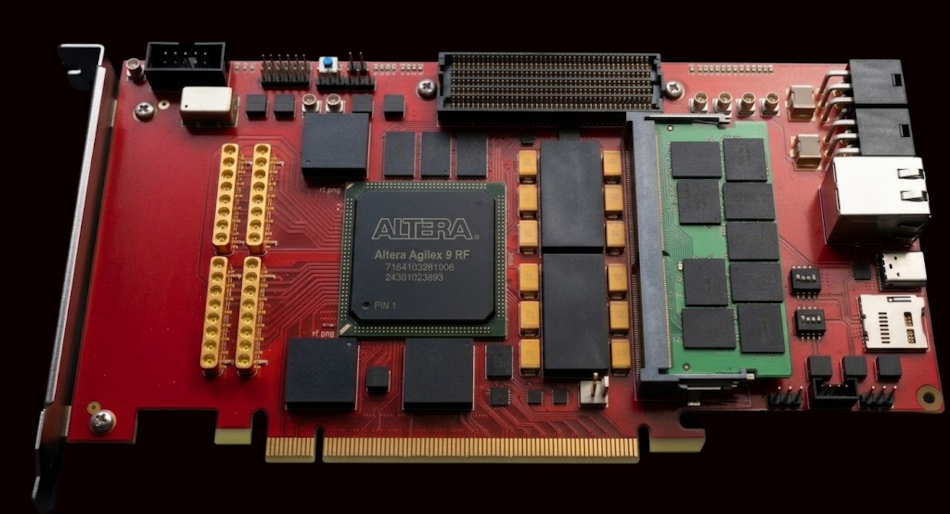

HTG-AGLX-9RF: Altera Agilex™ 9 Direct RF PCI Express Gen4 Platform

Coming soon!

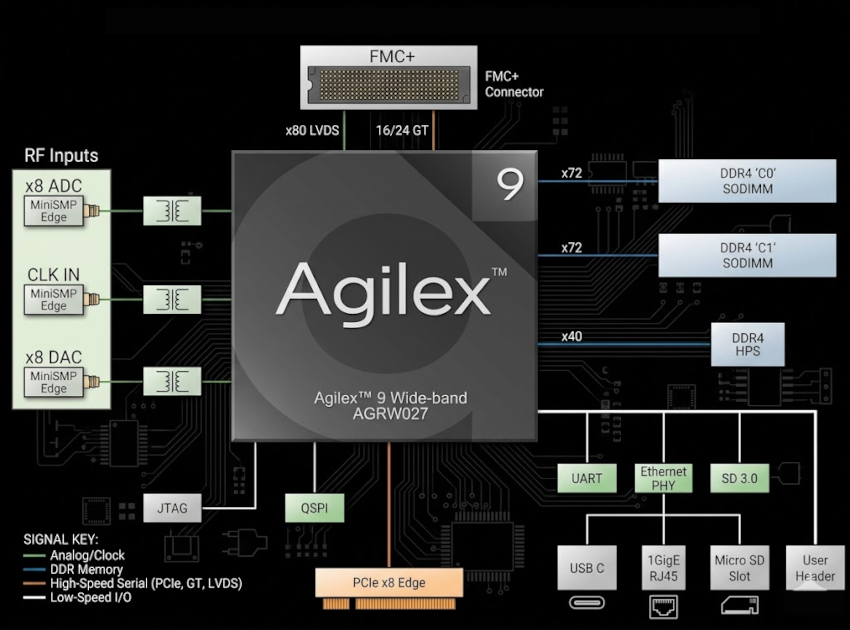

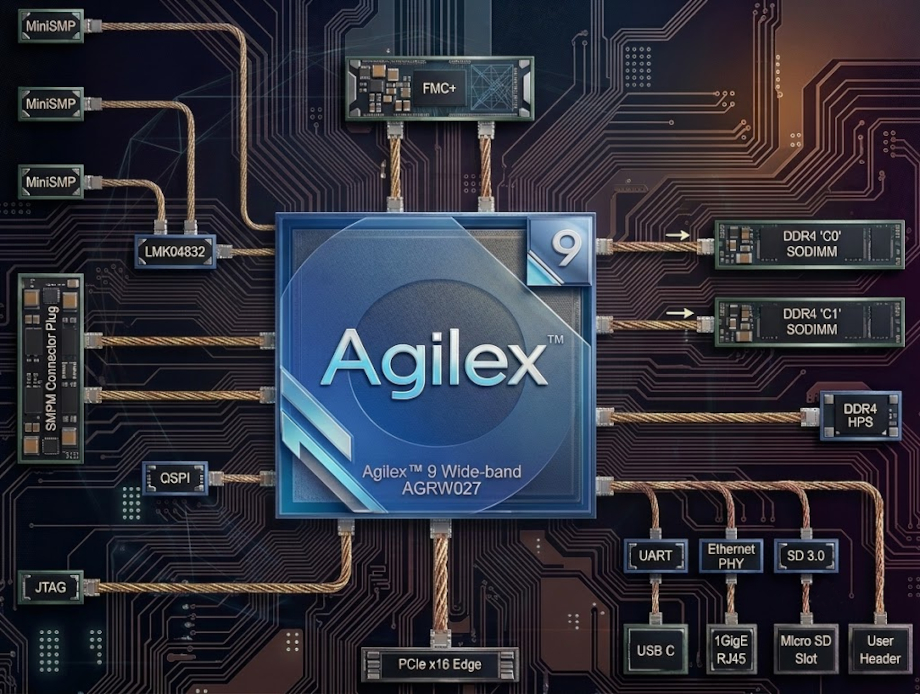

Powered by Altera Agilex™ 9 Direct RF Wide-band AGRW027 FPGA, the HTG-AGLX-9RF platform provides access to high-performance FPGA fabric, eight 10-bit ADC ports @ 64 Gsps/ eight 10-bit DAC ports @ 64 Gsps, PCIE Express Gen4 end point connectivity, wide range of expendable I/Os and two expandable DDR4 memory SODDIM sockets for variety of different programmable and wide band radio frequency applications.

The HTG-AGLX-9RF architecture allows easy and versatile functional expansion through one Vita 57.4 compliant High-Pin-Count FMC+ port . The FMC+ port provides access to total of 24 transceivers and 80 LVDS I/Os.

The HTG-AGLX-9RF platform can be used in PCI Express (x8 Gen4) or Standalone mode and powered through its 6-pin 12V Molex PCIe connectors.

Features:

► Populated with one AGRW027 Agilex 9 Direct RF FPGA
►x8 ADC ports @ 64 Gsps
►x8 DAC ports @ 64 Gsps
►External Clock Interface
► x8 PCIE Gen4 end point connector
► x1 FMC+ expansion port with total of 16/24 transceivers & 80 LVDS
► x2 72-bit SODIMM front/back sockets supporting up to 64GB of DDR4 memory (shipped with two 8GB SODIMMs)
►40-bit DDR4 HPS
► QSPI Flash for configuration
► x1 10/100/1000 Ethernet port
► x1 MicroSD socket
► x1 USB/UART port
► x1 JTAG port
► Supports both PCI Express and Standalone operations

Kit Content:

Hardware:
-HTG-AGLX-9RF platform

Reference Designs/Demos:
- PCI Express
- DDR4 memory controllers

Documents:
- User Manual
- Schematics (in searchable .pdf format)
- FPGA Pinout File

Ordering information

Part Numbers:
-HTG-AGLX-9RF

Price: Please contact us
