HTG-937: Xilinx Virtex UltraScale+ ™ VU37P/VU47P HBM Development Board

Powered by one AMD Virtex UltraScale+ VU37P or VU47P, the HTG-937 provides access to large FPGA gate density, 8GB/16GB of HBM, 16GB of 72-bit ECC DDR4 memory up to 96 GTY (30Gbps) serial transceivers, x16 PCIe Gen3 / x8 PCIe Gen4 end point, up to 240 differential I/Os, and three expansion ports for variety of different programmable applications.

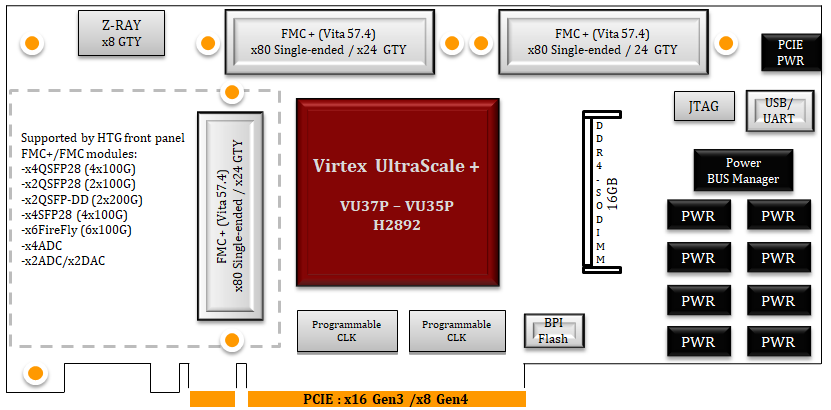

The HTG-937 architecture allows easy and versatile functional expansion through three Vita 57.4 compliant High-Pin-Count FPGA Mezzanine Card (FMC+) ports. The FMC+ ports provide access to up to 300 single-ended FPGA I/Os and 72 GTY (30.5Gbps) serial transceivers. Wide variety of FMC and FMC+ daughter cards and board-to-board cables are available through HiTech Global to mate with the HTG-937 platform's FMC+ ports.

The HTG-937 can be used in PCI Express and Standalone mode and powered through a 6-pin Molex PCIe connector.

Supported FPGAs:

Features:

►x1 AMD Virtex UltraScale+ VU47P
►x16 PCI Express Gen 3 / x8 PCI Express Gen4 end point
►x1 72-bit DDR4 SODIMM socket (up to 16GB- shipped with 4GB)
►x3 FMC+ (Vita 57.4) ports providing access to 300 single-ended FPGA I/Os, and 72 GTY (30.5G) serial transceivers (Vita57.1 compliant FMC daughter cards are also pluggable into the Vita57.4 compliant FMC+ ports)
►x1 ZRAY Serial Expansion Port (two GTY quads)
►x1 USB to UART Port
►x1 BPI Flash for configuration (1Gb)
►x1 Jtag port for configuration and debugging
►x1 Header with 8 GPIOs
►Ultra low-jitter Programmable oscillators & clock generators
► Power Management Bus
►Size: 9.5" x 4.25"
►Supports both PCI Express and Standalone operations
- 12V/8A Power adapter for standalone operation

Kit Content:

Hardware:
-HTG-937 platform

Reference Designs/Demos:
-PCI Express and DDR4 memory controller

Documents:
-User Manual
-Schematics (in searchable .pdf format)

Ordering information

Part Numbers:

HTG-937-47P (populated with one Virtex UltraScale VU47P FPGA)

Price: Please contact us
