HTG-VSL1: Versal PRIME /AI PCI Express Platform

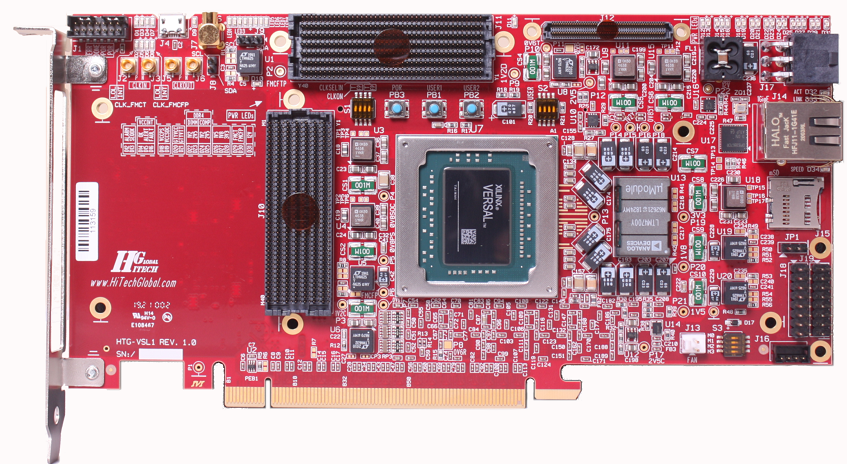

Populated with one AMD Versal XCVM1802 (PRIME) or XCVC1902 (AI) FPGA, the HTG-VSL1 platform provides access to large FPGA gate densities, PCIE Express Gen4 connectivity (or used in standalone) wide range of I/Os and expandable DDR4 memory for variety of different programmable applications.

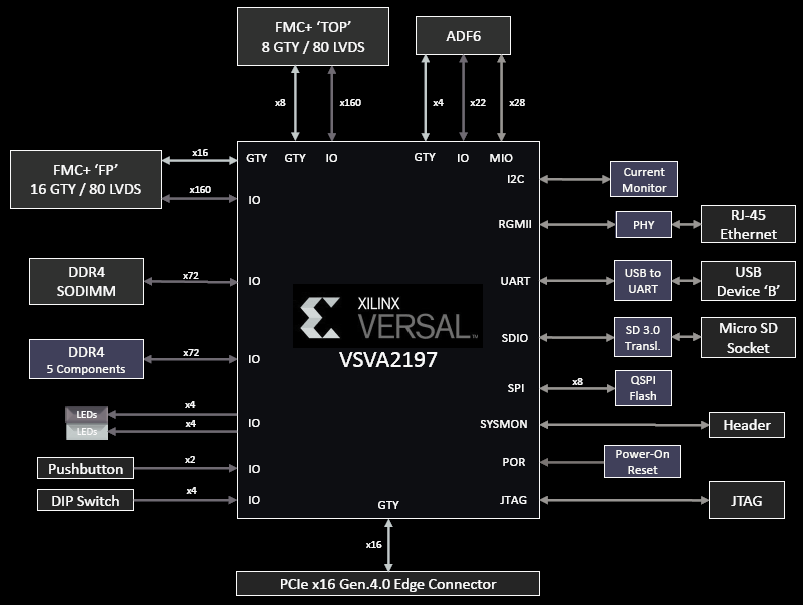

The HTG-VSL1 architecture allows easy and versatile functional expansion through two Vita 57.4 compliant High-Pin-Count FMC+ ports and one high-speed AcceleRate® port. The FMC+ ports provide access to total of 32 GTY serial transceivers and 320 Single-ended FPGA I/Os. The AcceleRate® port provides access to four GTY serial transceivers, 22 FPGA I/Os and 28 Processor I/Os.

The HTG-VSL1 platform is supported by up to 32GB DDR4 (SODIMM) for the PL side and 5GB (components) for the PS side.

The HTG-VSL1 platform can be used in PCI Express (x16 Gen4) and Standalone mode and powered through its 6-pin 12V Molex PCIe connector.

Features:

►Populated with one AMD Versal XCVM1802-VSVA2197 (PRIME) or XCVC1902-VSVA2197(AI) FPGA
►x16 PCIE Gen4
►x2 FMC+ expansion ports with total of x24 GTY serial transceivers & x320 Single-ended I/Os
►x1 Accelerate expansion port with x4 GTY serial transceivers, x22 FPGA I/Os and x28 Processor I/Os
►x1 DDR4 SODIMM (PL side up to 32GB)
►x5 DDR4 components (PS side 5GB)
►x2 QSPI Flash for configuration
►x1 10/100/1000 Ethernet port
►x1 MicroSD socket
►x1 USB/UART port
►x1 PPS connector
►x1 Power Bus Manager
► Size: 215.5 mm x 111 mm
► Supports both PCI Express and Standalone operations

Kit Content:

Hardware:
-HTG-VSLx platform

Reference Designs/Demos:
-PCI Express and DDR4 memory controllers

Documents:
-User Manual
-Schematics (in searchable .pdf format)

Ordering information

Part Numbers:

HTG-VSL1-P (populated with one XCVM1802-2MSEVSVA2197 FPGA)
HTG-VSL1-A (populated with one XCVC1902-2MSEVSVA2197 FPGA)

Price: Please contact us
