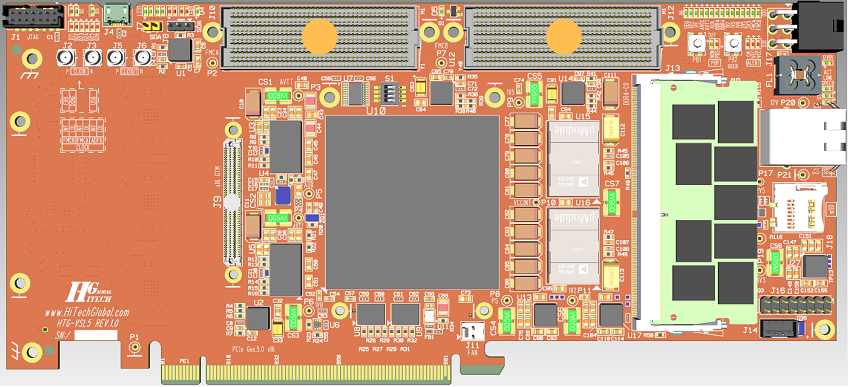

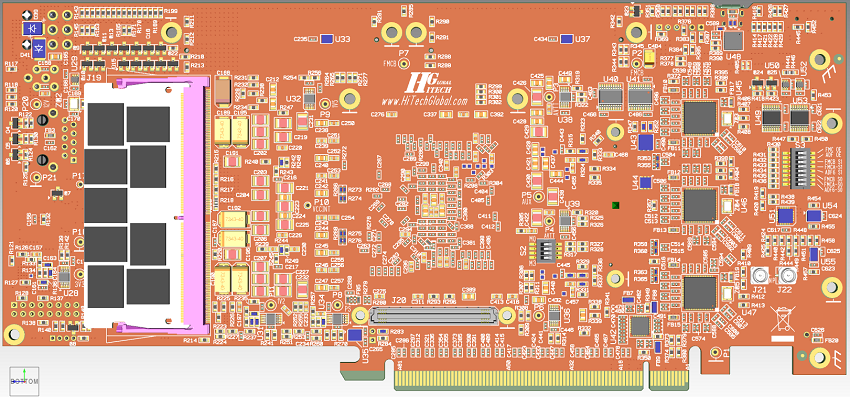

HTG-VSL5: AMD Versal Premium PCI Express Gen5 Platform

HTG-VSL5 with 2-port QSFP-DD daughter card

Populated with one AMD Versal Premium VP1502 or VP1552 FPGA, the HTG-VSL5 platform provides access to large FPGA gate densities, PCIE Express Gen5 connectivity, wide range of I/Os and two expandable DDR4 memory SODDIM sockets for variety of different programmable applications.

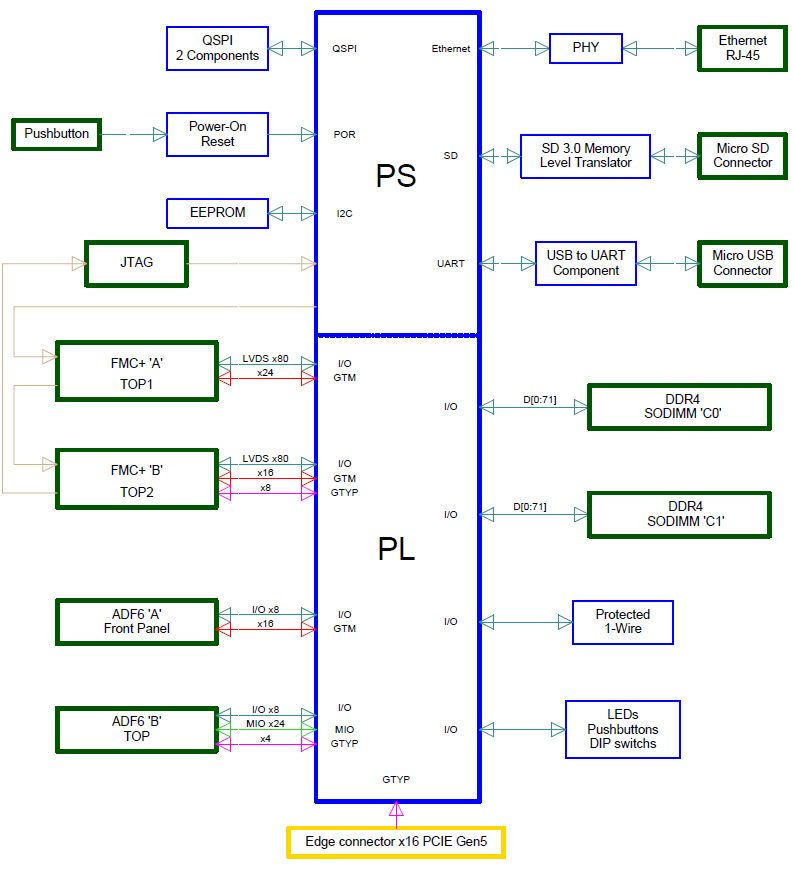

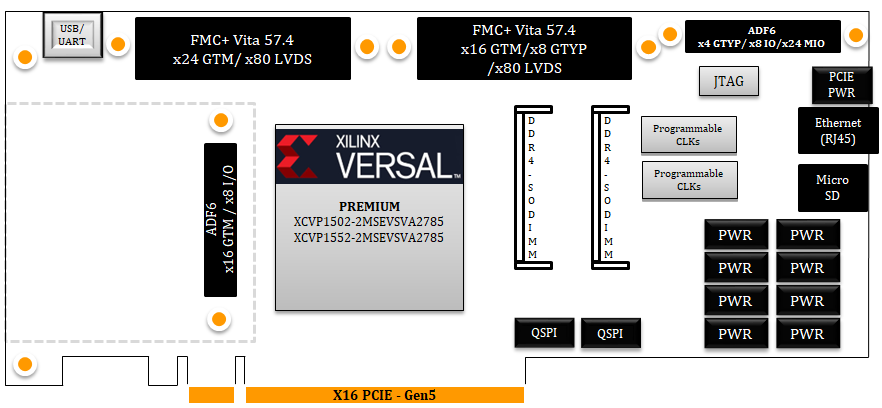

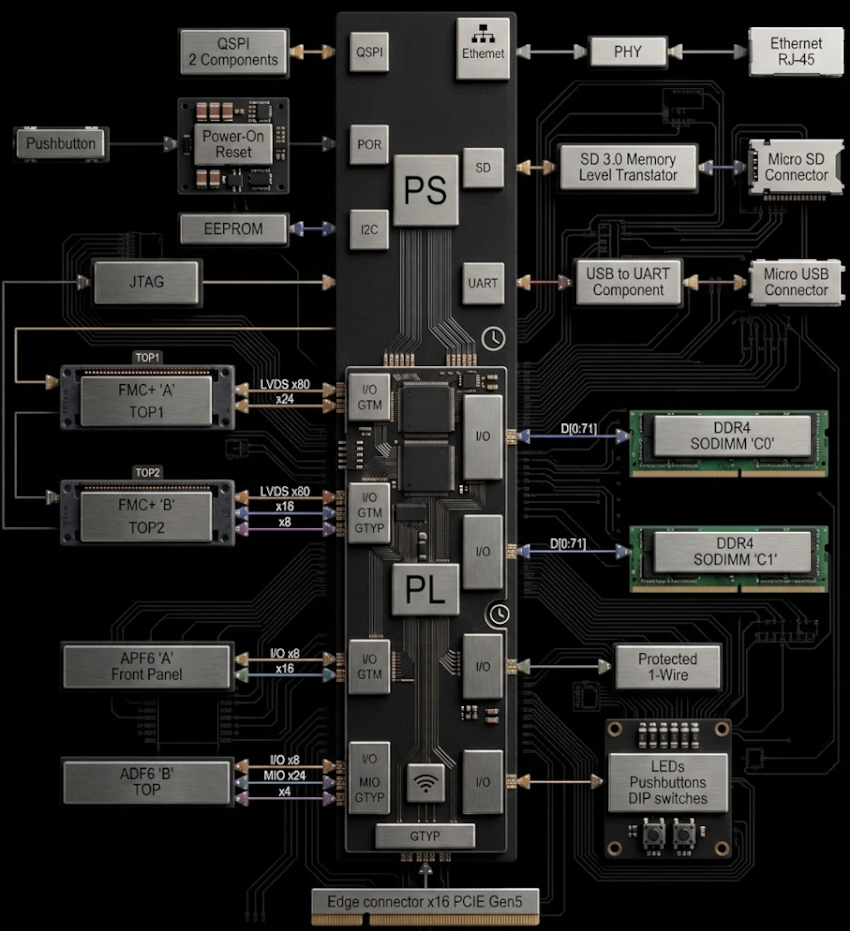

The HTG-VSL5 architecture allows easy and versatile functional expansion through two Vita 57.4 compliant High-Pin-Count FMC+ ports and two high-speed AcceleRate® ports (ADF6 and APF6). The FMC+ ports provide access to total of 40 GTM , 8 GTYP serial transceivers and 320 Single-ended FPGA I/Os. The AcceleRate® ports provide access to 16 GTM serial transceivers, 4 GTPY serial transceivers, x24 MI/O and x16 I/Os.

The HTG-VSL5 platform can be used in PCI Express (x16 Gen5) or Standalone mode and powered through its 6-pin 12V Molex PCIe connector

Features:

►Populated with one AMD Versal Premium VP1502 or VP1552 FPGA
►x16 PCIE Gen5 end point connector
►x2 FMC+ expansion ports with total of x40 GTM, x8 GTYP serial transceivers & x320 Single-ended I/Os
►x2 AcceleRate® expansion ports (ADF6 and APF6) with x16 GTM, x4 GTYP, x24 MI/O and x16 I/Os
►x2 72-bit SODIMM sockets supporting up to 64GB of DDR4 memory (shipped with two 4GB SODIMMs)
►x2 QSPI Flash for configuration
►x1 10/100/1000 Ethernet port
►x1 MicroSD socket
►x1 USB/UART port
►x1 Power Bus Manager
► Supports both PCI Express and Standalone operations

AcceleRate daughter cards /cables:

► x2 QSFP-DD
► 1.85 breakout card for four GTM ports

Kit Content:

Hardware:
-HTG-VSL5 platform

Reference Designs/Demos:
-PCI Express and DDR4 memory controllers

Documents:
-User Manual
-Schematics (in searchable .pdf format)
- FPGA pinout file
- Mechanical drawings (.dxf and .step files)

Ordering information

Part Numbers:

HTG-VSL5-02 (populated with XCVP1502-2MSEVSVA2785)
HTG-VSL5-52 (Populated with XCVP1552-2MSEVSVA2785)

Price: Please contact us

1.85 Breakout Daughter Card 1.85 Breakout Daughter Card (High-Speed Serial Transceivers )

Part Numbers:
-HTG-ADM6-X16-1.85 (mates with the ADF6 connector on the back side of the board)

-HTG-APM6-X16-1.85 (mates with the APF6 connector on the front side of the board)

2-Port QSFP-DD /QSFP28/QSFP+
Daughter card

Part Numbers:
-HTG-ADM6-X2QSFP-DD (mates with the ADF6 connector on the back side of the board)

-HTG-APM6-X2QSFP-DD (mates with the APF6 connector on the front side of the board)

Please contact us for your other daughter cards' requirements.
