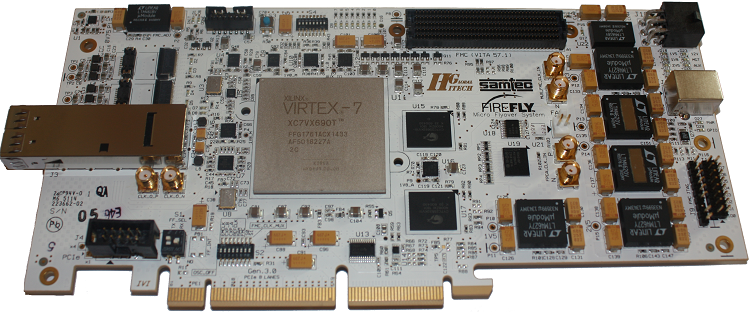

HTG-712: Xilinx
Virtex™ -7 High-End Networking Card with Samtec FireFly™
Two DDR3 SODIMM Sockets are placed on the reverse
side
Powered by Xilinx Virtex-7 V2000T, V585T, or
X690T, the HTG-712 is ideal for High-End networking applications
requiring data transfer above 120Gbps. The HTG-712 board is also ideal
for high-performance computing, high-end image processing, PCI Express
Gen 2 & 3 development, and general purpose FPGA development.
The HTG-712 is supported by one
Samtec FireFly™
Micro Flyover System with 12 Receive and Transmit serial ports. This is
the first inside-the-box interconnect system that gives designers a
choice of using either micro footprint high performance active optical
engines or low-cost copper interconnects. This allows the designer to
upgrade from electrical to optical FireFly™ using the same
connector system.
The ECUE Ribbon Coax Cable Features
- Performance up to 28
Gbps (the HTG-712 matches the GTX/GTH data rates)
- A large variety of end two connector termination options
- 50Ω 38AWG micro ribbon coax cable
- Capability to enable test and verification of connectors during
manufacturing
- Lower-cost AcceleRate™
100Ω 30 AWG twinax ribbon system for improved signal integrity
and lower profile |
The ECUO Active Optical Cable
assembly features
- x12 unidirectional
or bidirectional transceiver system
- 14 Gbps or 28 Gbps (in development) channel system
- Proven 850 nm VCSEL array technology
- Available in panel mount or full Tx-to-Rx active optical cable
- Protocol agnostic and support all data center and HPC protocols
including Ethernet, InfiniBand™, Fibre Channel, PCIe |
The High Pin Count (HPC) FMC connector
provides access to 160 single-ended I/Os (80 LVDS) and 10 high-speed
Serial Transceivers of the onboard Virtex 7 FPGA. Availability of over
100 different off-the-shelf
FMC modules extends
functionality of the board for variety of different applications with
minimum effort and cost.
Eight lanes of PCI Express Gen 2 (V585T &
V2000T) /3 (X690T) is supported by the hard coded controllers inside the
onboard Xilinx Virtex 7 FPGA.
The HTG-712 Virtex 7 FPGA board can be used
either in PCI Express mode (plugged into host PC/Server) or stand alone
mode (powered by external ATX or wall power supply).
|
Features:
►Xilinx Virtex-7 V2000T, 585T, or X690T FPGA
►x1 Samtec FireFly Port (12 Tx and
12 Rx)
►x1 QSFP+ Port (40 Gbps)- or x4 SFP+ ports using the QSFP+ to SFP+
conversion
cables
►
x8 PCI Express Gen2 /Gen 3 edge connectors
►
x1 FPGA Mezzanine Connector (FMC) providing access to 160 single-ended
I/Os (80 LVDS) and 10 high-speed Serial Transceivers
►
x2 DDR3 SODIMM sockets providing
access to up to 16GB of DDR3 Memory
►
x2 QDRII SRAM (72Mb each)
►Configuration through JTAG or
Micron G18 Flash
►
IP security chip set for
protecting any designs loaded to the FPGA
► USB to UART
bridge
► LEDs & Pushbuttons
►
Size: 9.5" x 4.25"
►Supports
both PCI Express and Standalone operations
-
12V/6A Power adapter for standalone operation
|
Kit
Content:
Hardware:
-
HTG-712 board
Reference Designs/Demos:
- PCI Express Gen2/3 PIO
- DDR3 Memory Controller
- QDRII Memory Controller
Documents:
- Hardware Setup Guide
- User Manual
- Schematics (in searchable .pdf format)
- User Constraint File (UCF)
Ordering information
Part Numbers:
- HTG-V7-PCIE-FF-585-2
Price:
Contact Us
- HTG-V7-PCIE-FF-690-2 Price:
Contact us
- HTG-V7-PCIE-FF-690-3 Price:
Contact us
- HTG-V7-PCIE-FF-2000-2 Price:
Contact us |
|

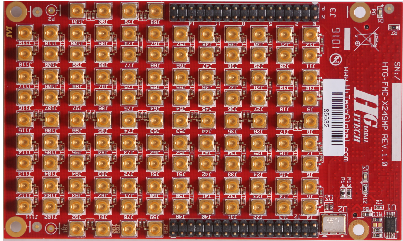

Accessories (FMC Modules) |
|
|
