FMC+ (Vita57.4) to x2 FMC (Vita57.1) Splitter Module

Left Turn Option Right Turn Option

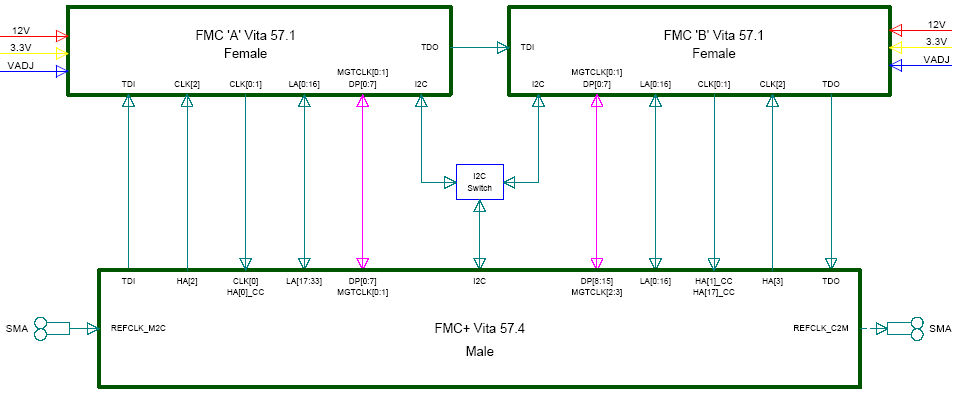

This module splits Serial (up to 28Gbps) and Singled-ended/LVDS I/Os from one FMC+ (Vita57.4) port on FPGA carrier cards to two FMC (Vita57.1) ports for hosting two daughter cards. The module is available with two options with turning to "Right" or "Left" depending on physical locations of FMC+ ports on FPGA carrier boards (the above image shows the option with turning to right).

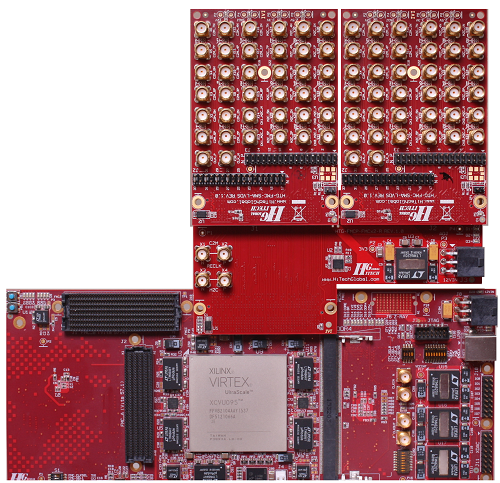

Implementation Example

Features:

►x1 FMC+ (Vita57.4) connector
►x2 FMC (Vita57.1) connectors
►x4 SMA connectors for external differential clocks (M2C & C2M)
►I2C Bus Switch
►6-pin PCIe power connector (12V input supply)

Ordering information

-Part Number: HTG-FMCP-FMCx2-R Price: $695 [Buy Online]
-Part Number: HTG-FMCP-FMCx2-L Price: $695 [Buy Online]

ECCN #: EAR99
SCHEDULE B #: 8471601050
