QUAD14-bit ADC (3 GSPS) FMC+ Module (Vita57.4)

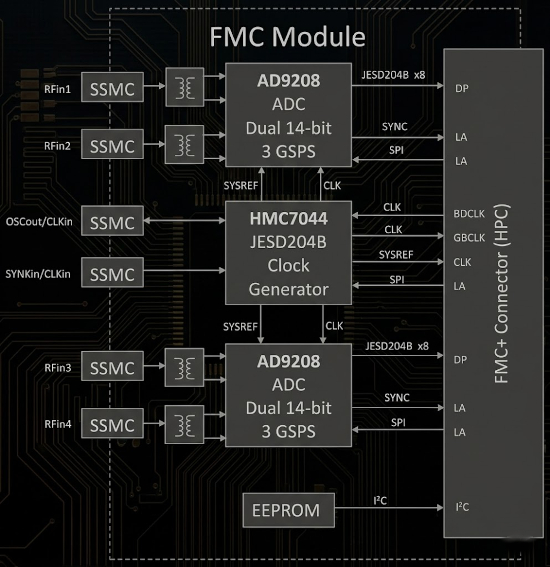

This Vita57.4/ JESD204B compliant FMC+ module is powered by two Analog Devices' AD9208 (dual 14-bit ADC @ 3 GSPS) and HMC7044 attenuator. The main interface with a host FPGA is supported through 16 serial transceivers. AD9689 is footprint compatible with AD9208 and can be offered as an option when ordering the product..

ADC (AD9208) Parameters

JESD204B (Subclass 1) coded serial digital outputs
- Support for lane rates up to 16 Gbps per lane
1.65 W total power per channel at 3 GSPS (default settings)
Performance at −2 dBFS amplitude, 2.6 GHz input
- SFDR = 70 dBFS
- SNR = 57.2 dBFS
Performance at −9 dBFS amplitude, 2.6 GHz input
- SFDR = 78 dBFS
- SNR = 59.5 dBFS
Integrated input buffer
Noise density = −152 dBFS/Hz
0.975 V, 1.9 V, and 2.5 V dc supply operation
9 GHz analog input full power bandwidth (−3 dB)
Amplitude detect bits for efficient AGC implementation
2 integrated, wideband digital processors per channel
- 48-bit NCO
- 4 cascaded half-band filters
Phase coherent NCO switching
Up to 4 channels available
Serial port control
- Integer clock with divide by 2 and divide by 4 options
- Flexible JESD204B lane configurations
On-chip dither

Applications:

Diversity multiband, multimode digital receivers
3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A
Electronic test and measurement systems
Phased array radar and electronic warfare
DOCSIS 3.0 CMTS upstream receive paths
HFC digital reverse path receivers

Ordering information

- Part Number: HTG-FMC-QUAD-14ADC
- Price: Please contact us

12" SSMC To SMA Cable
24" SSMC To SMA Cable

ECCN #: EAR99
SCHEDULE B #: 8471601050
