4-Port QSFP28 (4x100G) / QSFP+ (4x40G or 2x56G) FMC+ Module (Vita57.4)





Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 compliant carrier boards.

This Vita57.4 compliant FMC+ module is supported by four QSFP28 (100G) or four QSFP+ (40G/56G) ports and one Ultra-low jitter (90 fs rms) programmable clock generator (Si5341) providing flexible  clocks (LVDS, LVPECL, LVCMOS, CML, and HCSL) for serial transceivers of the host FPGA.  The I2C bus of the clock generator can be controlled either by host FPGAs or the on board PIC processor.

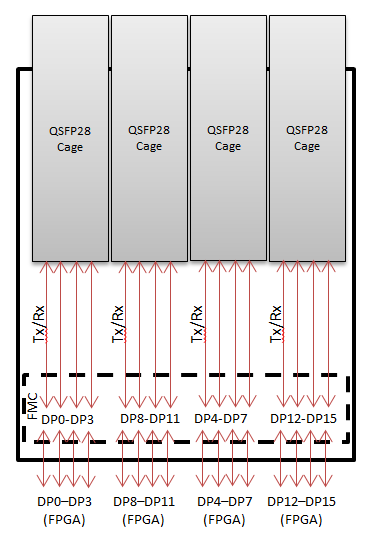

Each  QSFP28 /QSFP+ port is directly connected to four multi-gigabit serial transceivers of  Vita 57.4 compliant  FPGA carrier boards.



Features:

x4 QSFP28 (4x100G) / QSFP+ (4x40G/56G) Connectors
x1 Texas Instrument LMK61E2 programmable oscillator
x1 programmable clock generator (Si5341) providing dedicated clocks for each serial transceiver's quad
x1 PIC processor for I2C programming
x1External differential clock SMA port
x1EEPROM
x1FMC+ Connector
Ordering information

-Part Number: HTG-FMC-X4QSFP28
- Price: $895.00 [Buy Online]


ECCN #: EAR99
SCHEDULE B #:
8471601050
