4-Channel RS485/RS422  FMC Module (Vita57.1)




The RS485 standard (TIA-485) specifies differential data transmission over a terminated twisted pair.. The standard specifies electrical characteristics of a driver and receiver, and does not specify any data protocol or connectors. RS485 is popular for inexpensive local networks, multidrop communication links and long haul data transfer over distances of up to 4,000 feet. The use of a balanced line means RS485 has excellent noise rejection and is ideal for industrial and commercial applications. The RS422 standard is similar to the RS485 standard but does not permit multiple drivers on a bus. Similarly, the Profibus (Process Field Bus) protocol uses RS485’s popular physical medium when deploying fieldbus solutions in factory and process automation environments.

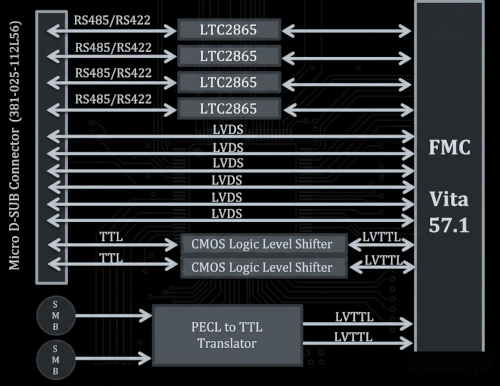

  • powered by Analog Devices LTC2865
    - 20Mbps RS485/RS422 Transceivers (x4)
    - 1.65V to 5.5V Logic Supply Pin (VL) for Flexible Digital Interface (    +VADJ_FMC)


Features:

►4 differential channels using Linear Tech 20Mb RS485/RS422 transceiver (TC2865)
►X6 LVDS ports
►X2 TTL/LVTTL ports
►X2 SMB LVTTL ports
►FMC  HPC Connector (direct interface to the FPGA)



ECCN #: EAR99
SCHEDULE B #: 8471601050



 Ordering information

Part Numbers:
HTG-25PMD-SMB
Price : $995
[Buy Online]

Cable Assembly Link
