4-Port SMA FMC Module (Vita57.1)

Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel I/Os, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 compliant carrier boards.

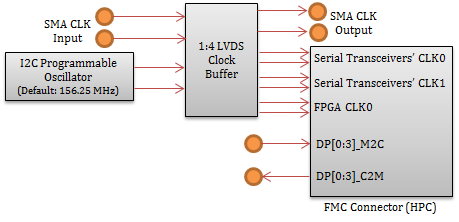

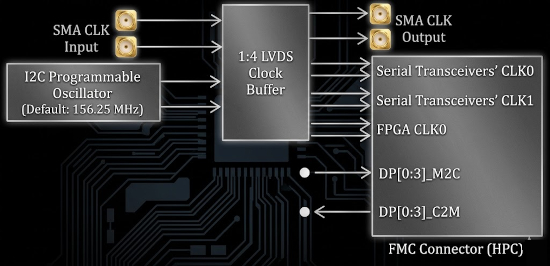

The 4-port SMA FMC (HPC) module is ideal for board-to-board connection through up to four serial transceivers of FPGA carrier boards. The module is also ideal for providing synchronized clock to two or more boards in a system as output clock of the first module (SMA connectors) can be fed as input clock to the second module (SMA connectors).

Features:

► x4 SMA ports (total of 16 SMA connectors on each module for TxN/P and RxN/P)
►Two independent input clock sources
► Synchronized differential clock through a pair of SMA connectors
► PCB Materials: Megtron 6
► SMA Connectors' Rating: 18GHz

Ordering information

Part Number: HTG-FMC-X4SMA
Price: $655
[Buy Online]

Kit Content:

- Schematic in pdf

ECCN #: EAR99
SCHEDULE B #: 8471601050
