2-Port QSFP28 (2x100G) / QSFP+ (2x40G or 2x56G) / SpaceWire / LVDS FMC Module (Vita57.1)






Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 compliant carrier boards.

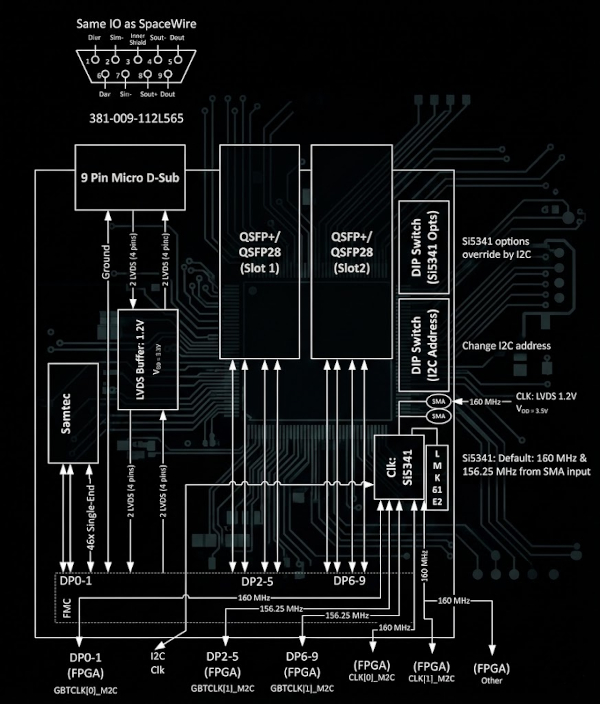

This Vita57.1 compliant FMC module is supported by two QSFP28 (100G) or two QSFP+ (40G/56G) ports, one SpaceWire port and one Samtec QSE connector supporting 2 Serial Transceivers and 48 singled-ended I/Os. The module is supported by ultra-low jitter Si5341 programmable clock generator.

Features:

►x2 QSFP28 (2x100G) / QSFP+ (2x40G/56G) Connectors
►x1  Micro D-Sub connector (SpaceWire)
 ►x1 Samtec QSH connector with 2 Serial Transceivers and 48 Single Ended I/Os
 ►x1 Silicon Labs Si5341 programmable clock generator
 ►x1 Texas Instrument LMK61E programmable oscillator
 ►x2 SMA connectors for external clock input
 ►x1 LVDS Buffer
 ►x1 EEPROM
 ►x1 Vita57.1 FMC HPC connector
 Ordering information

-Part Number: HTG-FMC-X2QSFP-9MD
 - Price: $895 [Buy Online]

ECCN #: EAR99
SCHEDULE B #: 8471601050
