 24-Port Mini SMP /GPPO (Rosenberger) FMC+ Module (Vita57.4)



Option "A"                                                                             Option "B"

The FMC-MSMP module is designed for accessing high-speed serial transceivers (30.5 Gbps) of  Vita57.4 compliant FPGA carrier cards . The module also provides access to 68 single-ended I/Os through two sets of standard pin headers. The module is available with clock option either  through an on-board ultra-low-jitter clock generator or external pulse generator.

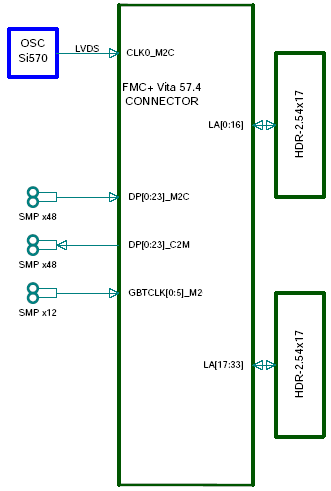

Option "A"
Serial Transceivers' reference clocks provided through external pulse generator

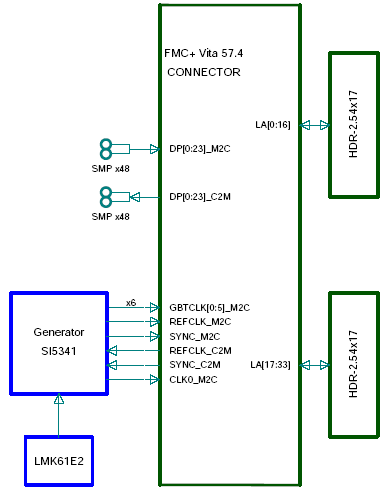

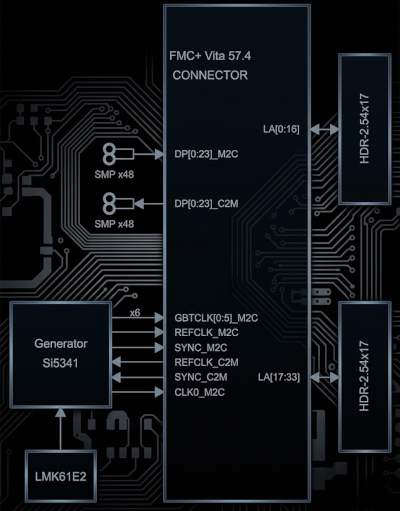

Option "B"
Serial Transceivers' reference clocks provided through on-board clock generator (Si5341)

Mini SMP (GPPO/SSMP) connectors' Electrical Characteristic:

- Impedance 50 Ω
- Frequency DC to 65 GHz
- Return loss ≥ 19 dB, DC to 26.5 GHz
                       ≥ 13 dB, 26.5 to 40 GHz
                       ≥ 9 dB, 40 to 65 GHz
- Insertion loss ≤ 0.05 x Square Root (f(GHz)dB, DC to 26.5 GHz
- Insulation resistance ≥ 5 GΩ
- Center contact resistance ≤ 6.0 mΩ
- Outer contact resistance ≤ 2.0 mΩ
- Working voltage (at sea level) 325 V rms (at 70000 feet) 125 V rms

Features:

►x24 Mini SMP Connectors  (Rosenberger)
 ►Dedicated clock for each serial transceiver's quad
 ►x1 EEPROM
 ►FMC+ Connector
 Ordering information

Part Number & Price:
HTG-FMC-X24MSMP-A (option "A"): $1,695 [Buy Online]
HTG-FMC-X24MSMP-B (option "B"): $1,795 [Buy Online]


 ECCN #: EAR99
SCHEDULE B #: 8471601050
HiTech Global's Vita 57 Compliant FPGA Carrier Boards (click for more)


HiTech Global's other Vita57.x Compliant FMC Daughter Cards

Vita 57.1 (FMC)
Quad 12-Bit (4 GSPS) ADC
Quad16-Bit (12 GSPS) DAC
More info..

Vita 57.4 (FMC+)
Single 12-bit ADC (10.25 GSPS)
Dual 16-bit DAC (12.6 GSPS)
More info...

Vita 57.1 (FMC)
Dual14-bit ADC (3 GSPS)
Dual 16-bit DAC (12.6 GSPS)
More info..

Vita 57.4 (FMC+)
Quad 14-bit ADC (3 GSPS)
FMC+ Module
More info..

Vita 57.1 (FMC)
4-Channel 16-bit ADC (1 GSPS) FMC Module  More info..

Vita 57.4 (FMC+)
4-channel 16-bit DAC(2.8 GSPS)
More info..

Vita 57.1 (FMC)
2-channel 16-bit DAC (2.8 GSPS)
More info..

Vita57.1 (FMC) & Vita57.4 (FMC+ & FMC cables
More Info..

Vita 57.4 (FMC+)
x2 QSFP-DD (Double Density) FMC+ Module More Info..

Vita57.1 (FMC)
2-port QSFP28 / QSFP+ FMC Module More Info..

Vita 57.4 (FMC+)
4-port QSFP28/QSFP+ FMC+ Module More info..

Vita 57.4 (FMC+)
x6 FireFly (600G) FMC+ Module
More info...

Vita 57.4 (FMC+)
6-port QSFP28 / QSFP+ FMC+ Module  More info..

Vita 57.4 (FMC+)
CFP8 FMC+ Module
More info..



Vita57.1 (FMC)
 QSFP28 (100G) /LVDS
FMC Module More info..

Vita57.1 (FMC)
10-port SFP+(10x10G)  FMC Module  More info..

Vita57.1 (FMC)
x2 QSFP28 / SpaceWire/ LVDS
FMC Module  More info..

Vita57.1 (FMC)
QSFP28 SFP+ / QSE FMC Module
More Info..

Vita57.1 (FMC)
SFP+/  QSFP+ FMC Module
 More info..

Vita57.1 (FMC)
2-port QSFP+  FMC Module
More Info..

Vita 57.4 (FMC+)/Vita 57.1 FMC
I/O Loopback FMC/FMC+ / Clock Generator Module
 More Info..

Vita 57.4 (FMC+)
Low-profile x4 FireFly FMC+ Modules
Right turn (when inserted)
More info..

Vita 57.4 (FMC+)
Low-profile x4 FireFly FMC+ Modules
Left turn (when inserted)
More info..

Vita 57.4 (FMC+)
4-port  OCuLink FMC+ Module
More info..

Vita57.1 (FMC)
3-port USB 3.0 FMC Module
More Info...

Vita57.1 (FMC)
42-channel RS485/RS422 FMC Module  More Info..

Vita57.1 (FMC)
X8 PCI Express Root Complex FMC Module More info.

Vita 57.4 (FMC+)
X16 PCI Express Root Complex FMC Module More info..

Vita57.1 (FMC)
4-channel RS485/RS422 FMC Module
More Info..

Vita57.1 (FMC)
Quad RJ45 Ethernet FMC Module (SGMII)
More Info..

Vita57.1 (FMC)
SFF-8639/Display Port/ SATA/ Ethernet / USB FMC Module
More info..

Vita57.1 (FMC)
26-port LVDS FMC Module
More Info..

Vita57.1 (FMC) & Vita57.4 (FMC+ & FMC cables
More Info..


Vita57.1 (FMC)
4-port SMA FMC Module (one pair)
More Info..

Vita57.1 (FMC)
4-port SFP+ (4x10G) FMC Module  More Info..


Vita57.1 (FMC)
9-channel receiver/ 7-chanenl transmitter RS422 FMC Module
More Info..

Vita 57.4 (FMC+) / Vita57.1 (FMC)
FMC+ to FMC Splitter Module
More info..

Vita 57.4 (FMC+)
24-port  Mini SMP/GPPO
 / 34-pair LVDS FMC Module
More info..

Vita57.1 (FMC)
8-port SMA / 33-pair LVDS FMC Module
More Info.

Vita 57.1(FMC)
x2 M.2 SSD FMC Module

More info..

Vita57.1 (FMC)
FMC to EXAMAX Backplane Conversion Module
Coming soon:

- FMC+ to pin header debug/probe module
- FMC to pin header debug/probe module
-FMC to PCIe End Point module



Related Accessories

12" Mini SMP To Mini SMP Cable
[Buy Online]

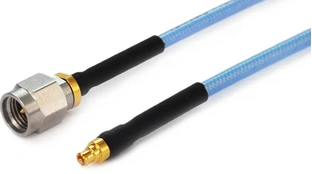

24" Mini SMP To SMA+ Cable
