Xilinx Virtex™ -4 PCI Express®  Gen 1 & 2 Development Board

The HTG-V4PCIe board is powered by Xilinx Virtex-4 XC4VFX100-FF1152 with sixteen RocketIO™ Multi Gigabit Transceivers, two IBM 405 PowerPC® processors, four hard-coded Gigabit Ethernet Media Access Controllers (MAC) , and more than 94,000 FPGA logic cells. The HTG-V4PCIe is also available with  XC4VFX60-FF1152.

The HTG-V4PCIe provides wide variety of connectors and interfaces including ;one PCI Express 8-lane upstream (end-point), one PCI Express 4-lane downstream, two Gigabit Ethernet (10/100/1000), two Serial ATA (SATA), one Secure Digital (SD), one SPF, four SMA (connected to one RocketIO MGT channel), one USB 2.0 host  and General Purpose I/Os (GPIO)

The HTG-V4PCIe board  provides access to up to 2 GB of DDR2 memory through one set of SO-DIMM socket as well as 256 MB of mounted and 4 MB of Flash on the board.

The HTG-V4PCIe can be used either as stand-alone or PCI Express based card. This provides additional functionality and cost saving so designers can use the board for multiple designs and projects.

The feature-rich Virtex-4 FX60/FX100 FPGAs , availability of more than 100 + different IP Cores through HiTech Global, and variety of different connectors and interfaces, make the HTG-V4PCIe an extremely versatile platform for serial interface, embedded system, and storage designs.

The Virtex-4 HTG-V4PCIe can be bundled and shipped with any of the following IP Cores (in binary format) for evaluation:

- PCI Express
- SATA Host
- SD/SDIO/MMC
- DDR 2 Memory Controller

Feature/Product

XC
4VFX12

XC
4VFX20

XC
4VFX40

XC
4VFX60

XC
4VFX100

XC
4VFX140

Logic Cells

12,312

19,224

41,904

56,880

94,896

142,128

Block RAM/FIFO w/ECC (18 kbits each)

36

68

144

232

376

552

Total Block RAM (kbits)

648

1224

2,592

4,176

6,768

9,936

Digital Clock Managers (DCM)

4

4

8

12

12

20

Phase-matched Clock Dividers (PMCD)

0

0

4

8

8

8

Max Differential I/O Pairs

160

160

224

288

384

448

XtremeDSP™ Slices

32

32

48

128

160

192

PowerPC Processor Blocks

1

1

2

2

2

2

10/100/1000 Ethernet MAC Blocks

2

2

4

4

4

4

RocketIO Serial Transceivers

0

8

12

16

20

24

Configuration Memory Bits

5,017,088

7,641,088

15,838,464

22,262,016

35,122,240

50,900,352

Max SelectIO

320

320

448

576

768

896




Xilinx FPGA
ISE Design Tool




Xilinx PlanAhed

Features:

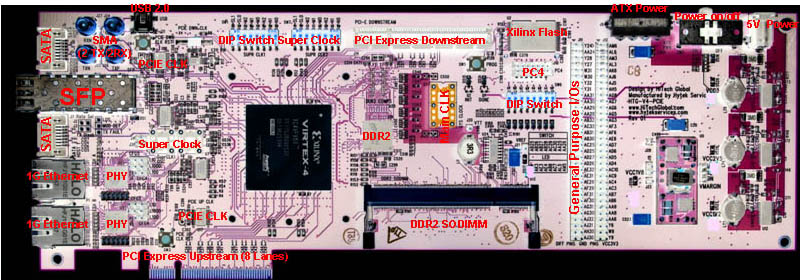

- Xilinx Virtex-4 FX100-11 in FF1152 Package
- 8-Lane PCI Express Male Connector (upstream)
- 4-Lane PCI Express Female Connector (downstream)
- 2x SATA Connectors (supporting SATA I & II)
- 1x SFP Connector
- 2x Tri Mode Ethernet (10/100/1000)
- 4x SMA (2 Tx and 2 Rx) - Connected to one RocketIO MGT channel
- 1x Mini USB 2.0 Host
- 128 MB DDR2 (soldered components)
- 1x DDR2 SODIMM (Up to 2 GB)
- 4MB Flash Memory
- GPIO Header (single-ended I/Os)
- 2x Supper Clock
- Size: 12" x 4.25 "

Kit Content:
- HTG-V4PCIE Board
- Documentations (User Manual, Schematics, SW drivers binary files, PCI Express reference design, etc.)

-Part Number & Price:

HTG-V4-PCIE-100-11       (with XC4VFX100-11FF1152) : $3,995

- Software:
- PCI Express GUI Source Code (C) - Windows XP   : $4,500
- PCI Express Driver Source Code (C) - Windows XP or Linux  :  $4,500

Optional Modules:

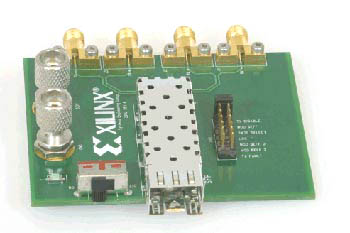

SMA-TO-SFP

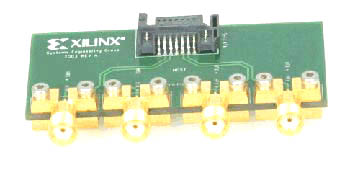

SMA-TO-SATA

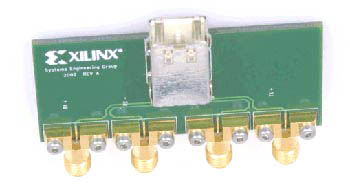

 SMA-TO-HSSDC2
SMA To SMA Cable:
SMA-CBL2 : $18  (24 Inches) - Used for connecting 4 on-board SMA connectors  to the above conversion modules.
